# Unity URP BRDF shader

本篇主要内容是在 Unity URP 中实现 BRDF shader

BRDF 理论部分在这篇文章中讲解。

Unity 版本：Unity 6.0
渲染路径：Forward / Forward+

# 代码

# BRDF

经典的 BRDF 模型只描述单次表面反射，这会导致渲染结果偏暗。为了解决这个问题，需要做多次散射补偿。
- 为了防止结果偏暗，本篇使用简单的经验参数近似。
- 符合物理的多次散射可以使用 Kulla-Conty 近似，其理论部分在这篇文章中讲解。
环境光照使用拟合预计算的 BRDF LUT

MyBRDF.hlsl

	// GGX normal distribution function
	// GGX 法线分布函数
	// GGX 用于描述微表面模型中微观几何表面法线的概率分布
	// Unity 中已经定义了 D_GGX，为了防止冲突这里换一个名字
	float D_GGX_1(float NdotH, float roughness)
	{
	float a = roughness * roughness;
	float a2 = a * a;
	float denom = (NdotH * NdotH * (a2 - 1) + 1);
	return a2 / (PI * denom * denom);
	}

	// Smith geometric occlusion function
	// Smith 几何遮蔽函数
	// 几何遮蔽 (G) 在 BRDF 中用于模拟微表面间的自阴影和遮蔽效应
	float V_Smith(float NdotV, float NdotL, float roughness)
	{
	// Smith-GGX 高度相关几何遮蔽，性能优化版
	// 这里返回的是 V = G / (4 * NdotL * NdotV)
	float a = roughness * roughness;
	float a2 = a * a;
	float v = NdotL * sqrt(NdotV * NdotV * (1 - a2) + a2);
	float l = NdotV * sqrt(NdotL * NdotL * (1 - a2) + a2);
	return 0.5 / max(v + l, 0.001);

	// G_Smith
	// 原始 GGX 高度相关几何遮蔽的实现，后续还要除以 4 * NdotV * NdotL
	//float r = pow(roughness, 4);
	//float k = 2 * NdotL * NdotV;
	//float v = NdotL * sqrt(r + (1 - r) * pow(NdotV, 2));
	//float l = NdotV * sqrt(r + (1 - r) * pow(NdotL, 2));
	//return k / max(v + l, 0.001);

	// UE4 的实现
	//float a = roughness * roughness;
	//float v = NdotL * (NdotV * (1 - a) + a);
	//float l = NdotV * (NdotL * (1 - a) + a);
	//return 0.5 / max(v + l, 0.001);

	// Unity HDRP 的实现
	//float a = roughness;
	//float v = NdotL * (NdotV * (1 - a) + a);
	//float l = NdotV * sqrt(NdotL * NdotL * (1 - a * a) + a * a);
	//return 0.5 / max(v + l, 0.001);
	}

	// Schlick Fresnel
	// Schlick 菲涅尔近似
	// 菲涅尔是指光照基于观察者的角度来形成不同强度反射的现象
	half3 F_Schlick(float HdotV, half3 F0)
	{
	return F0 + (1 - F0) * pow(1 - HdotV, 5);
	}

	// 拟合预计算的 BRDF LUT (Scale 和 Bias)
	// Brian Karis 在 "Real Shading in Unreal Engine 4" 中提出的一个经验公式，用于近似环境光照中高光部分的 BRDF 效果
	float3 EnvBRDFApprox(half3 f0, float roughness, float NdotV)
	{
	// 这里的常数是针对 GGX 分布的拟合结果
	const float4 c0 = { -1, -0.0275, -0.572, 0.022 };
	const float4 c1 = { 1, 0.0425, 1.04, -0.04 };

	// 计算受粗糙度影响的中间系数 r
	// 描述了不同粗糙度下反射能量的分布规律
	float4 r = roughness * c0 + c1;

	// 模拟菲涅尔项随角度变化的响应 (Grazing Angle 补偿)
	//exp2 (-9.28 * NdotV) 是一个非常经典的经验拟合公式，用于模拟物体边缘（掠射角）处，反射率由于菲涅尔效应急剧增加的曲线
	float angularResponse = min(r.x * r.x, exp2(-9.28 * NdotV)) * r.x + r.y;

	// 得到 A (Scale) 和 B (Bias)
	// 这里的常数 float2 (-1.04, 1.04) 是为了将前面的 angularResponse 映射回正确的积分能量区间
	float2 AB = float2(-1.04, 1.04) * angularResponse + r.zw;

	// 最终结合 F0
	// 这个结果直接对应了单次散射下，物体在 IBL 环境中的高光反射率
	return f0 * AB.x + AB.y;
	}

	half3 DirectBRDF(float3 mainlightDirWS, InputData inputData, SurfaceData surfaceData)
	{
	// 半角向量
	float3 halfDir = normalize(mainlightDirWS + inputData.viewDirectionWS);

	// 各种角度余弦值
	float NdotL = saturate(dot(inputData.normalWS, mainlightDirWS));
	float NdotV = saturate(dot(inputData.normalWS, inputData.viewDirectionWS));
	float NdotH = saturate(dot(inputData.normalWS, halfDir));
	float VdotH = saturate(dot(inputData.viewDirectionWS, halfDir));

	// 粗糙度
	float roughness = max(1 - surfaceData.smoothness, 0.001);

	// 金属度影响菲涅尔反射率
	half3 F0 = lerp((half3)0.04.xxx, surfaceData.albedo, surfaceData.metallic);

	// 单次反射
	float D = D_GGX_1(NdotH, roughness);
	float V = V_Smith(NdotV, NdotL, roughness);
	half3 F = F_Schlick(VdotH, F0);
	half3 specular = D * V * F;

	// 多次散射
	// 为了防止结果偏暗，这里使用简单的经验参数近似
	specular *= 3;

	half3 kd = (1 - F) * (1 - surfaceData.metallic);

	// 在物理公式中，Lambert 漫反射需要除以 PI 来保证能量守恒: kd * albedo / PI
	// 但在部分游戏引擎中，光源的强度已经隐含了 PI 的补偿。此时除以 PI 会导致物体的亮度下降
	half3 diffuse = kd * surfaceData.albedo;

	return (diffuse + specular) * NdotL;
	}

	// 间接光照的 BRDF 计算
	half3 IndirectBRDF(InputData inputData, SurfaceData surfaceData)
	{
	float NdotV = saturate(dot(inputData.normalWS, inputData.viewDirectionWS));

	float roughness = max(1 - surfaceData.smoothness, 0.001);
	float a = roughness * roughness;

	half3 F0 = lerp((half3)0.04.xxx, surfaceData.albedo, surfaceData.metallic);

	// 间接漫反射 (使用 SH 环境球谐)
	half3 indirectDiffuse = SampleSH(inputData.normalWS) * surfaceData.albedo * (1 - surfaceData.metallic);

	// 间接高光 (使用反射探针)
	float3 reflectVector = reflect(-inputData.viewDirectionWS, inputData.normalWS);
	half3 indirectSpecular = GlossyEnvironmentReflection(reflectVector, inputData.positionWS, a, surfaceData.occlusion, inputData.normalizedScreenSpaceUV);

	// 使用近似 LUT 补偿能量，这一步会根据 NdotV 和 Roughness 计算出高光反射的比例
	indirectSpecular *= EnvBRDFApprox(F0, a, NdotV);

	return indirectDiffuse + indirectSpecular;
	}

# Shader

为了兼容 SRP Batcher 需要单独写一个 CBUFFER

MyInput.hlsl

	TEXTURE2D(_BaseMap);
	SAMPLER(sampler_BaseMap);
	TEXTURE2D(_BumpMap);
	SAMPLER(sampler_BumpMap);

	CBUFFER_START(UnityPerMaterial)
	float4 _BaseMap_ST;
	float4 _BumpMap_ST;
	float _BumpScale;
	float _Metallic;
	float _Smoothness;
	half4 _BaseColor;
	CBUFFER_END

Shader 部分包含 UniversalForward、ShadowCaster、DepthOnly、DepthNormals

MyBRDF.shader

	Shader "Unlit/MyBRDF"
	{
	Properties
	{
	_BaseMap("Base Map", 2D) = "white" {}
	_BaseColor("Base Color", Color) = (1, 1, 1, 1)
	_BumpMap("Normal Map", 2D) = "bump" {}
	_BumpScale("Bump Scale", float) = 1
	_Metallic("Metallic", Range(0, 1)) = 0
	_Smoothness("Smoothness", Range(0, 1)) = 0.5
	}
	SubShader
	{
	Tags
	{
	"RenderType" = "Opaque"
	"RenderPipeline" = "UniversalPipeline"
	}

	LOD 100

	Pass
	{
	Name "MyForward"
	Tags
	{
	"LightMode" = "UniversalForward"
	}

	HLSLPROGRAM
	#pragma target 3.0

	// 顶点 / 片元入口
	#pragma vertex vert
	#pragma fragment frag

	// 雾效
	#pragma multi_compile_fog

	// Forward+
	#pragma multi_compile _ _FORWARD_PLUS

	// 主光源阴影
	#pragma multi_compile _ _MAIN_LIGHT_SHADOWS
	#pragma multi_compile _ _MAIN_LIGHT_SHADOWS_CASCADE

	// 额外光源（逐顶点 / 逐像素）
	#pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS

	// 额外光源阴影
	#pragma multi_compile _ _ADDITIONAL_LIGHT_SHADOWS

	// 软阴影
	#pragma multi_compile _ _SHADOWS_SOFT

	#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
	#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

	#include "./MyInput.hlsl"
	#include "./MyBRDF.hlsl"

	struct Attributes
	{
	float4 positionOS : POSITION;
	float3 normalOS : NORMAL;
	float4 tangentOS : TANGENT;
	float4 texcoord : TEXCOORD0;
	};

	struct Varyings
	{
	float4 positionCS : SV_POSITION;
	float4 uv : TEXCOORD0;
	float3 positionWS : TEXCOORD1;
	float3 normalWS : TEXCOORD2;
	float4 tangentWS : TEXCOORD3;

	#ifdef _ADDITIONAL_LIGHTS_VERTEX
	// x: fogFactor, yzw: vertex light
	half4 fogFactorAndVertexLight : TEXCOORD4;
	#else
	half fogFactor : TEXCOORD4;
	#endif
	};

	void InitializeSurfaceData(float4 uv, out SurfaceData outSurfaceData)
	{
	outSurfaceData = (SurfaceData)0;

	// 纹理
	half4 albedo = SAMPLE_TEXTURE2D(_BaseMap, sampler_BaseMap, uv.xy);

	outSurfaceData.alpha = albedo.a;
	outSurfaceData.albedo = albedo.rgb * _BaseColor.rgb;
	outSurfaceData.albedo = AlphaModulate(outSurfaceData.albedo, outSurfaceData.alpha);

	// 法线
	half4 packedNormal = SAMPLE_TEXTURE2D(_BumpMap, sampler_BumpMap, uv.zw);

	outSurfaceData.normalTS = UnpackNormalScale(packedNormal, _BumpScale);

	outSurfaceData.metallic = _Metallic;
	outSurfaceData.smoothness = _Smoothness;
	outSurfaceData.occlusion = 1;
	}

	void InitializeInputData(Varyings input, float3 normalTS, out InputData inputData)
	{
	inputData = (InputData)0;

	inputData.positionWS = input.positionWS;
	inputData.viewDirectionWS = GetWorldSpaceNormalizeViewDir(input.positionWS);

	float sign = input.tangentWS.w;
	float3 bitangentWS = sign * cross(input.normalWS.xyz, input.tangentWS.xyz);

	inputData.tangentToWorld = half3x3(input.tangentWS.xyz, bitangentWS.xyz, input.normalWS.xyz);

	// mul(normalTS, tangentToWorld)
	inputData.normalWS = TransformTangentToWorld(normalTS, inputData.tangentToWorld, true);

	// 归一化的屏幕 UV
	inputData.normalizedScreenSpaceUV = GetNormalizedScreenSpaceUV(input.positionCS);

	// 计算阴影坐标
	inputData.shadowCoord = TransformWorldToShadowCoord(inputData.positionWS);

	// 计算雾效坐标
	#ifdef _ADDITIONAL_LIGHTS_VERTEX
	inputData.fogCoord = InitializeInputDataFog(float4(input.positionWS, 1.0), input.fogFactorAndVertexLight.x);
	inputData.vertexLighting = input.fogFactorAndVertexLight.yzw;
	#else
	inputData.fogCoord = InitializeInputDataFog(float4(input.positionWS, 1.0), input.fogFactor);
	#endif
	}

	Varyings vert (Attributes i)
	{
	Varyings o;

	o.positionWS = TransformObjectToWorld(i.positionOS.xyz);
	o.positionCS = TransformWorldToHClip(o.positionWS);
	o.normalWS = TransformObjectToWorldNormal(i.normalOS);
	o.tangentWS.xyz = TransformObjectToWorldDir(i.tangentOS.xyz);
	o.tangentWS.w = i.tangentOS.w;

	o.uv.xy = TRANSFORM_TEX(i.texcoord, _BaseMap);
	o.uv.zw = TRANSFORM_TEX(i.texcoord, _BumpMap);

	half3 vertexLight = VertexLighting(o.positionWS, o.normalWS);

	half fogFactor = 0;
	#if !defined(_FOG_FRAGMENT)
	fogFactor = ComputeFogFactor(o.positionCS.z);
	#endif

	#ifdef _ADDITIONAL_LIGHTS_VERTEX
	o.fogFactorAndVertexLight = half4(fogFactor, vertexLight);
	#else
	o.fogFactor = fogFactor;
	#endif

	return o;
	}

	half4 frag (Varyings i) : SV_Target
	{
	// SurfaceData
	SurfaceData surfaceData;
	InitializeSurfaceData(i.uv, surfaceData);

	// InputData
	InputData inputData;
	InitializeInputData(i, surfaceData.normalTS, inputData);

	// 主光源
	Light mainLight = GetMainLight(inputData.shadowCoord);
	half3 mainlightDirWS = normalize(mainLight.direction);

	// 直接光
	half3 directBRDF = DirectBRDF(mainlightDirWS, inputData, surfaceData);
	half3 diffuse = directBRDF * mainLight.color * mainLight.shadowAttenuation;

	// 额外光源
	#ifdef _ADDITIONAL_LIGHTS
	uint lightCount = GetAdditionalLightsCount();
	LIGHT_LOOP_BEGIN(lightCount)
	Light light = GetAdditionalLight(lightIndex, inputData.positionWS, half4(1, 1, 1, 1));
	float3 addBRDF = DirectBRDF(normalize(light.direction), inputData, surfaceData);
	diffuse += addBRDF * light.color * light.distanceAttenuation * light.shadowAttenuation;
	LIGHT_LOOP_END
	#endif

	// 环境光
	half3 indirectBRDF = IndirectBRDF(inputData, surfaceData);

	// 最终颜色
	half4 finalColor = half4(diffuse + indirectBRDF, surfaceData.alpha);

	finalColor.rgb = MixFog(finalColor.rgb, inputData.fogCoord);

	return finalColor;
	}

	ENDHLSL
	}

	Pass
	{
	Name "MyShadowCaster"
	Tags
	{
	"LightMode" = "ShadowCaster"
	}

	ZTest LEqual
	ColorMask 0

	HLSLPROGRAM
	#pragma target 3.0

	#pragma vertex ShadowPassVertex
	#pragma fragment ShadowPassFragment

	// 在生成阴影贴图时用于区分方向光阴影和点光源阴影，因为它们使用不同的公式来应用法线偏移。
	#pragma multi_compile_vertex _ _CASTING_PUNCTUAL_LIGHT_SHADOW

	#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
	#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Shadows.hlsl"

	struct Attributes
	{
	float4 positionOS : POSITION;
	float3 normalOS : NORMAL;
	};

	struct Varyings
	{
	float4 positionCS : SV_POSITION;
	};

	CBUFFER_START(UnityPerFrame)
	float3 _LightDirection;
	float3 _LightPosition;
	CBUFFER_END

	float4 GetShadowPositionHClip(Attributes input)
	{
	float3 positionWS = TransformObjectToWorld(input.positionOS.xyz);
	float3 normalWS = TransformObjectToWorldNormal(input.normalOS);

	#if _CASTING_PUNCTUAL_LIGHT_SHADOW
	float3 lightDirectionWS = normalize(_LightPosition - positionWS);
	#else
	float3 lightDirectionWS = _LightDirection;
	#endif

	float4 positionCS = TransformWorldToHClip(ApplyShadowBias(positionWS, normalWS, lightDirectionWS));
	positionCS = ApplyShadowClamping(positionCS);
	return positionCS;
	}

	Varyings ShadowPassVertex(Attributes input)
	{
	Varyings output;
	output.positionCS = GetShadowPositionHClip(input);
	return output;
	}

	half4 ShadowPassFragment(Varyings input) : SV_TARGET
	{
	return 0;
	}

	ENDHLSL
	}

	Pass
	{
	Name "MyDepthOnly"
	Tags
	{
	"LightMode" = "DepthOnly"
	}

	ZWrite On
	ColorMask R

	HLSLPROGRAM
	#pragma target 3.0

	#pragma vertex DepthOnlyVertex
	#pragma fragment DepthOnlyFragment

	#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"

	struct Attributes
	{
	float4 positionOS : POSITION;
	};

	struct Varyings
	{
	float4 positionCS : SV_POSITION;
	};

	Varyings DepthOnlyVertex(Attributes input)
	{
	Varyings output;
	output.positionCS = TransformObjectToHClip(input.positionOS.xyz);
	return output;
	}

	half DepthOnlyFragment(Varyings input) : SV_TARGET
	{
	return input.positionCS.z;
	}
	ENDHLSL
	}

	Pass
	{
	Name "MyDepthNormals"
	Tags
	{
	"LightMode" = "DepthNormals"
	}

	ZWrite On

	HLSLPROGRAM
	#pragma target 3.0

	#pragma vertex DepthNormalsVertex
	#pragma fragment DepthNormalsFragment

	#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"

	#include "./MyInput.hlsl"

	struct Attributes
	{
	float4 positionOS : POSITION;
	float4 tangentOS : TANGENT;
	float3 normal : NORMAL;
	float2 texcoord : TEXCOORD0;
	};

	struct Varyings
	{
	float4 positionCS : SV_POSITION;
	float2 uv : TEXCOORD0;
	float3 normalWS : TEXCOORD1;
	float4 tangentWS : TEXCOORD2;
	};

	Varyings DepthNormalsVertex(Attributes input)
	{
	Varyings output;

	VertexPositionInputs vertexInput = GetVertexPositionInputs(input.positionOS.xyz);
	VertexNormalInputs normalInput = GetVertexNormalInputs(input.normal, input.tangentOS);

	output.positionCS = vertexInput.positionCS;
	output.normalWS = normalInput.normalWS;
	output.tangentWS.xyz = normalInput.tangentWS.xyz;
	output.tangentWS.w = input.tangentOS.w;

	output.uv = TRANSFORM_TEX(input.texcoord, _BumpMap);

	return output;
	}

	half4 DepthNormalsFragment(Varyings input) : SV_Target
	{
	float3 bitangent = input.tangentWS.w * cross(input.normalWS.xyz, input.tangentWS.xyz);
	half4 packedNormal = SAMPLE_TEXTURE2D(_BumpMap, sampler_BumpMap, input.uv);
	float3 normalTS = UnpackNormalScale(packedNormal, _BumpScale);
	float3 normalWS = TransformTangentToWorld(normalTS, half3x3(input.tangentWS.xyz, bitangent.xyz, input.normalWS.xyz));
	half4 outNormalWS = half4(NormalizeNormalPerPixel(normalWS), 0);

	return outNormalWS;
	}
	ENDHLSL
	}
	}
	}

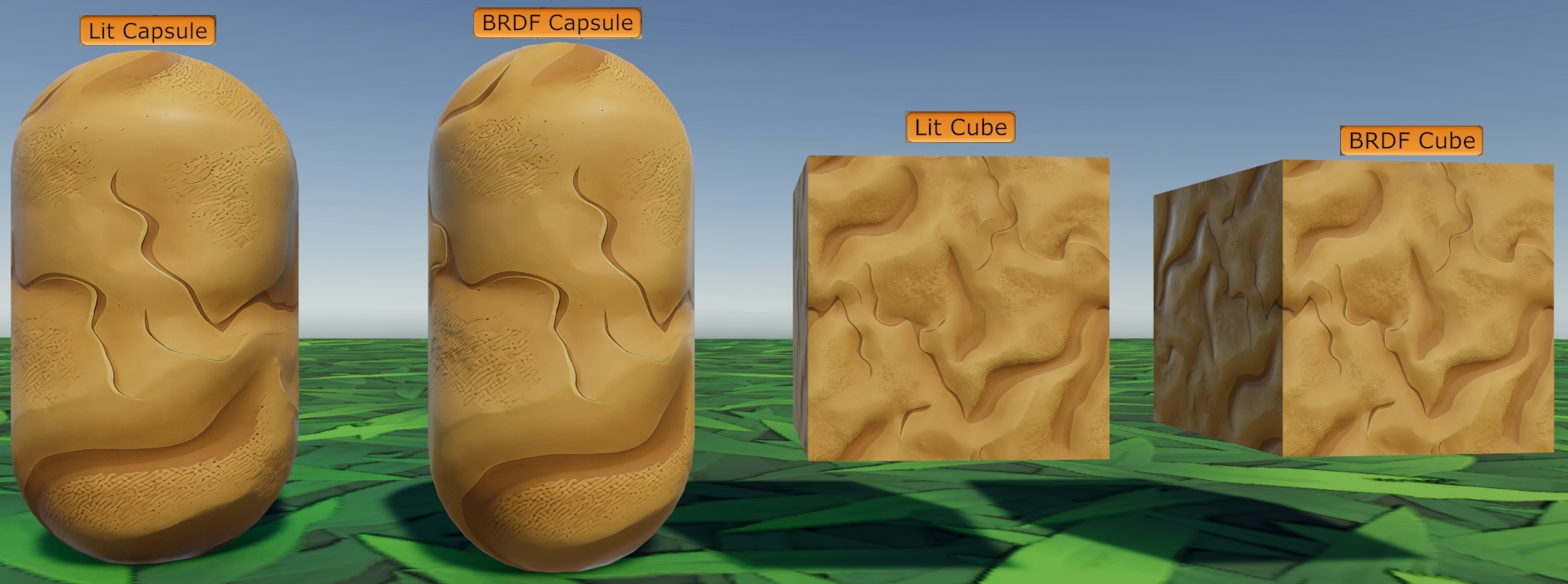

# 效果

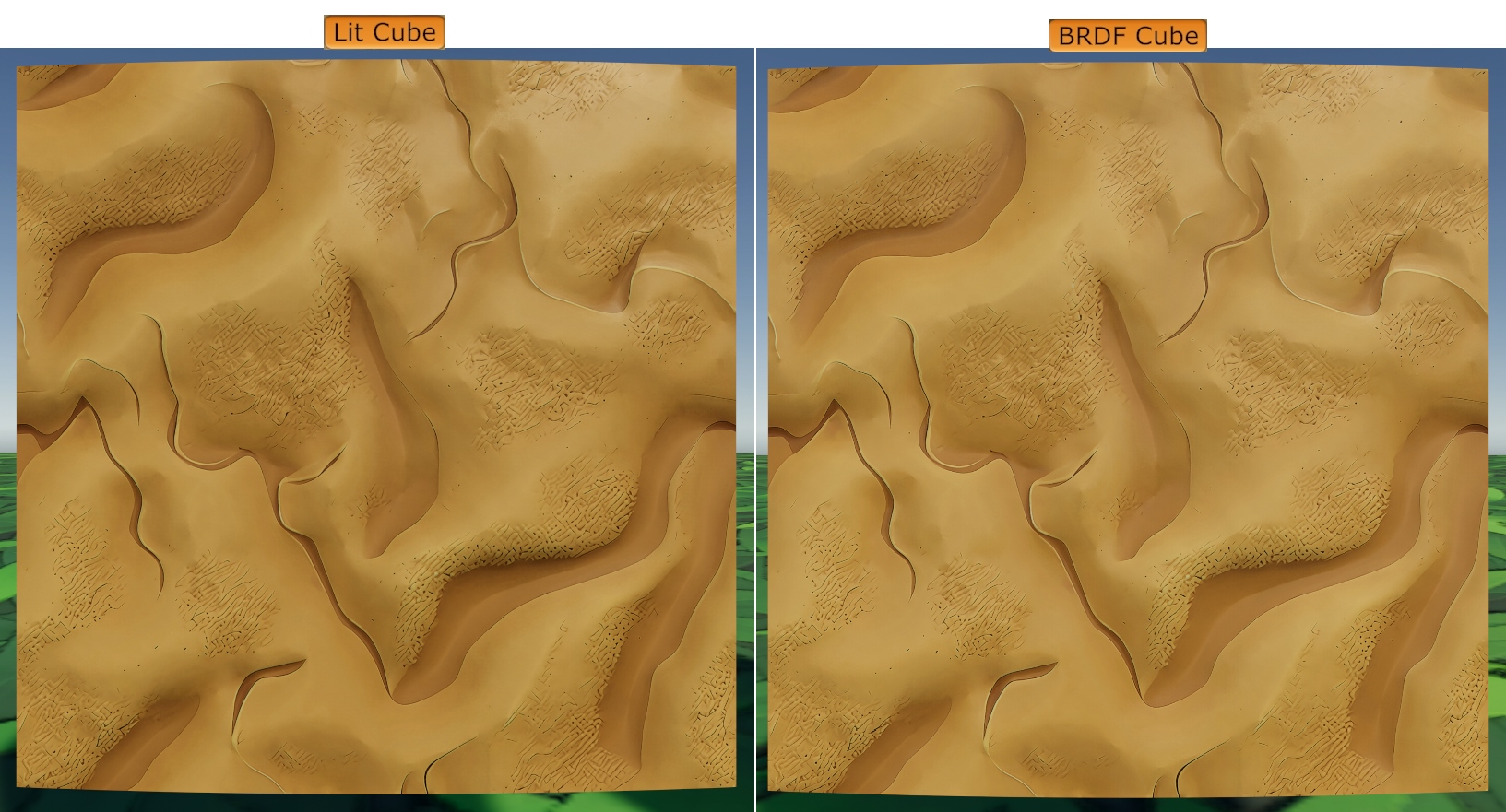

Metallic = 0
Smoothness = 0.5

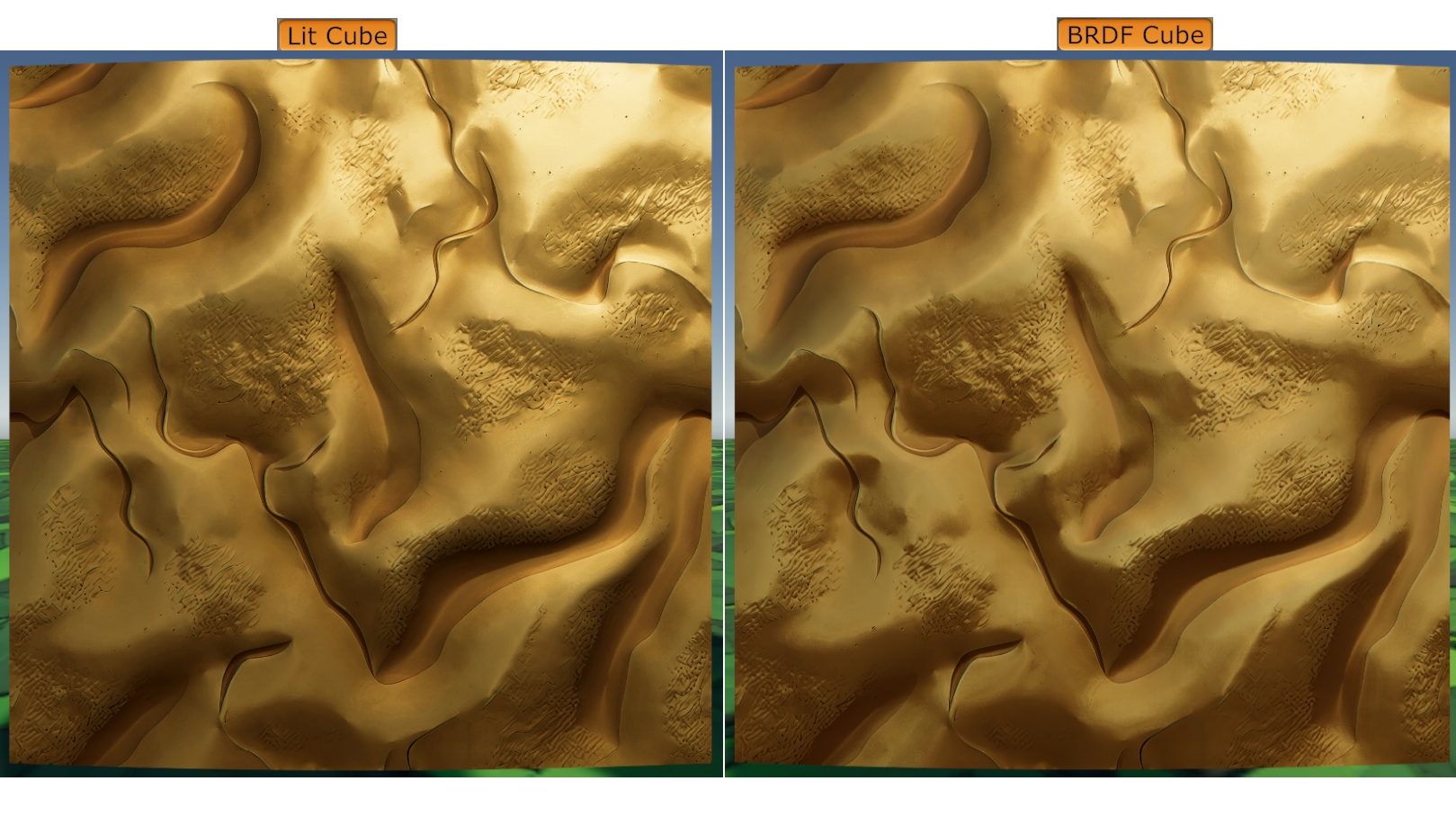

Metallic = 1
Smoothness = 0.5

# Unity URP BRDF shader

# 代码

# BRDF

# Shader

# 效果

双向反射分布函数（BRDF）

Kulla-Conty 多次散射补偿
