# 行为树（Behavior Tree）

行为树（Behavior Tree, BT）是一种在游戏开发（尤其是 AI）、机器人控制、自动化系统等领域广泛使用的任务建模和执行框架。它以其高度模块化、可读性强、易于设计和调试的特性，成为替代或补充传统状态机（FSM）和分层状态机（HFSM）的流行选择。

行为树是一种树状的结构，从根节点开始执行，自顶向下，从左到右：执行流通常从根节点开始，按照特定的顺序遍历子节点。控制节点根据其类型和子节点的返回状态决定下一步执行哪个节点。

行为树与有限状态机的对比

特性	行为树 (BT)	状态机 (FSM)
结构	层次化树形结构	节点（状态）和边（转换）构成的图
逻辑组织	控制流（顺序、选择、并行）	状态和转换条件
复用性	高 (节点、子树高度复用)	中 / 低 (状态逻辑容易粘连)
可读性	高 (树形结构直观，尤其可视化后)	中 (状态多时转换线可能混乱)
调试	较易 (运行时可视化执行路径)	较难 (跟踪状态转换历史)
动态响应	高 (每次 Tick 重新评估条件)	中 (依赖状态转换条件触发)
长任务	内建支持 (Running 状态)	需手动管理 (状态内维护计时器等)
复杂度	节点类型多，但逻辑分散	状态数量可能爆炸，转换条件复杂
适用场景	复杂决策逻辑、任务导向 AI、需要高度模块化和复用性	状态明确、转换相对简单、对性能要求苛刻

# 行为树设计

# 核心节点

行为树的核心节点类型

Composite 组合节点
- 这些节点负责控制子节点的执行流程
- 包括：选择节点、顺序节点、并行节点、优先级节点
- 例如：选择（Selector）节点，实现 “或” 的逻辑
Decorator 装饰节点
- 这些节点只包含一个子节点，用来修改它的行为或结果
- 包括：反转节点、重复节点、计时节点、限制节点、过滤节点、成功节点、失败节点
- 例如：过滤（Filter）节点，需要先检查条件，以此决定是否执行子节点
Condition 条件节点
- 条件节点检查某个条件是否成立，例如 “是否看到敌人”、“是否血量小于 50%” 等
Behavior 行为节点
- 这些是真正执行动作的节点，比如：“移动到某个点”、“播放动画”、“攻击” 等
根节点
- 树的起点，唯一的节点（通常是 Selector）

每个节点在执行后会返回四个结果之一，行为树系统会根据这些返回值来判断下一步该做什么：

Success：节点任务成功完成
Failure：节点任务失败
Running：节点任务需要更多时间才能完成（正在执行中）
- 下次会继续从这个节点开始执行（或由其父节点决定），而不是每次都从根节点开始。这是行为树管理长时间任务的核心机制。
Abort：强制中断所有节点，用于处理紧急情况或高优先级节点

假设有个敌人 AI，它的行为逻辑是：

如果看见玩家，就追击
否则就在原地巡逻

用行为树来描述就是：

	Selector
	├── Filter
	│ ├── Condition: 看见玩家
	│ └── Behavior: 追击
	└── Behavior: 巡逻

# 重要结构 - 栈

树的遍历经常需要使用栈这个结构，行为树也是如此

行为树的执行过程在结构上非常接近树的先根遍历

因为行为树每一帧的执行流程，大致是：
1. 先访问当前节点（父节点）
2. 然后依次遍历并执行它的每一个子节点（从左到右）
3. 遇到某些特殊控制节点（如 Selector 或 Sequence），根据子节点返回值决定是否继续往下遍历或中止
这和先根遍历（父节点 → 子节点）逻辑一致

# 重要结构 - 黑板

它是一个共享的数据存储区域（通常是键值对容器或结构体，但是在 CSharp 中使用类会更方便），被行为树中的所有节点访问和修改。用于存储和传递各类数据

行为树节点数据（节点栈、根节点、当前节点）
AI 实体的状态（位置、生命值、目标）
感知信息（最近看到的敌人、听到的声音位置）
临时任务数据（移动的目标点、要攻击的对象）
节点间通信，避免了节点之间直接耦合

# 代码

# 数据类

节点状态

	namespace BehaviorTree
	{
	/// <summary>
	/// 行为树节点返回的状态
	/// </summary>
	public enum BTState
	{
	/// <summary>
	/// 成功
	/// </summary>
	Success,
	/// <summary>
	/// 失败
	/// </summary>
	Failure,
	/// <summary>
	/// 运行
	/// </summary>
	Running,
	/// <summary>
	/// 中断
	/// </summary>
	Abort,
	}
	}

自动寻路的模式

	using System;
	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 寻路模式
	/// </summary>
	[Serializable]
	public enum BTPatrolModes
	{
	[Tooltip("无（在巡逻节点返回失败）")]
	None,
	[Tooltip("单次")]
	Once,
	[Tooltip("循环")]
	Loop,
	[Tooltip("往返")]
	RoundTrip,
	}
	}

过滤结构

	namespace BehaviorTree
	{
	/// <summary>
	/// 过滤结构
	/// </summary>
	public struct BTFilter
	{
	/// <summary>
	/// 条件节点
	/// </summary>
	public ConditionNode condition;
	/// <summary>
	/// 子节点
	/// </summary>
	public BTNode child;
	}
	}

黑板（Blackboard）

	using Character;
	using SkillSystem;
	using System;
	using System.Collections.Generic;
	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 行为树数据
	/// </summary>
	[Serializable]
	public class BTBlackboard
	{
	[Tooltip("行为树数据")]
	public BTAsset nodeAsset;

	[Tooltip("移动速度")]
	public float moveSpeed;
	[Tooltip("视野距离")]
	public float viewDistance;
	[Tooltip("视野角度")]
	public float viewAngle;
	[Tooltip("可以被发现的目标的标签")]
	public string[] targetTags = { "Player" };
	[Tooltip("进入攻击节点的距离")]
	public float attackNodeDistance;
	[Tooltip("攻击时间间隔")]
	public float attackTimeInterval;
	[Tooltip("判断是否到达路点的偏移量")]
	public float patrolEffect;
	[Tooltip("寻路模式")]
	public BTPatrolModes patrolMode = BTPatrolModes.None;
	[Tooltip("巡逻的路点")]
	public Transform[] wayPoints;

	[HideInInspector]
	[Tooltip("外部中断条件")]
	public List<Func<bool>> interruptions;
	[HideInInspector]
	[Tooltip("节点栈")]
	public Stack<BTNode> nodeStack;
	[HideInInspector]
	[Tooltip("优先级节点")]
	public BTNode priorityNode;
	[HideInInspector]
	[Tooltip("根节点")]
	public BTNode root;
	/// <summary>
	/// 当前节点
	/// </summary>
	public BTNode Current
	{
	get
	{
	if (nodeStack.Count == 0)
	{
	return null;
	}

	return nodeStack.Peek();
	}
	}

	[HideInInspector]
	[Tooltip("角色的信息")]
	public CharacterStatus character;
	[HideInInspector]
	[Tooltip("角色的动画")]
	public Animator anim;
	[HideInInspector]
	[Tooltip("发现的目标")]
	public Transform[] foundTargets;
	[HideInInspector]
	[Tooltip("技能系统")]
	public CharacterSkillSystemNPC npcSkill;
	[HideInInspector]
	[Tooltip("当前的技能")]
	public SkillData currentSkill;
	}
	}

配置文件采用 ScriptableObject

	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 行为树配置
	/// </summary>
	[CreateAssetMenu(menuName = "Behavior Tree Asset")]
	public class BTAsset : ScriptableObject
	{
	[Tooltip("行为树的节点配置")]
	[TextArea(10, 80)]
	public string config;

	}
	}

# 节点基类

BTNode 作为所有节点的基类，包括共有的属性和方法
提供节点状态属性
提供进入节点、运行节点、退出节点、中断节点的方法
统一控制入栈和出栈

	namespace BehaviorTree
	{
	/// <summary>
	/// 行为树节点的基类
	/// </summary>
	public abstract class BTNode
	{
	/// <summary>
	/// 当前节点的执行状态
	/// </summary>
	public BTState State { get; protected set; } = BTState.Failure;

	/// <summary>
	/// 进入节点时执行一次
	/// </summary>
	public virtual void EnterNode(BehaviorTree bt)
	{
	bt.blackboard.nodeStack.Push(this);
	}

	/// <summary>
	/// 行为树节点的执行方法
	/// </summary>
	/// <returns></returns>
	public abstract BTState TickNode(BehaviorTree bt);

	/// <summary>
	/// 运行结束时执行一次
	/// </summary>
	public virtual void ExitNode(BehaviorTree bt)
	{
	bt.blackboard.nodeStack.Pop();
	}

	/// <summary>
	/// 中断节点的执行
	/// </summary>
	public void Abort(BehaviorTree bt)
	{
	ExitNode(bt);
	State = BTState.Abort;
	}
	}
	}

根据核心节点的类型进一步细分为三类：控制节点、行为节点、条件节点
控制节点：组合节点和装饰节点的父类。提供添加子节点的方法，便于构建行为树
行为节点：提供行为节点特有的字段、属性、方法
条件节点：提供特有的条件属性，简化具体条件节点的代码

控制节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 控制节点（用于控制子节点的执行）
	/// </summary>
	public abstract class ControlNodes : BTNode
	{
	/// <summary>
	/// 添加子节点
	/// </summary>
	/// <param name="child"></param>
	public virtual void AddChild(BTNode child) { }

	/// <summary>
	/// 添加过滤器
	/// </summary>
	/// <param name="condition"></param>
	/// <param name="child"></param>
	public virtual void AddChild(BTFilter filter) { }
	}
	}

行为节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 行为节点
	/// </summary>
	public abstract class BehaviorNode : BTNode
	{
	/// <summary>
	///true: 搜索目标时忽略墙体
	/// </summary>
	public virtual bool IgnoreWalls { get => false; }
	}
	}

条件节点

	using System;

	namespace BehaviorTree
	{
	/// <summary>
	/// 条件节点
	/// </summary>
	public abstract class ConditionNode : BTNode
	{
	/// <summary>
	/// 条件
	/// </summary>
	protected abstract Func<BehaviorTree, bool> Condition { get; }

	public override BTState TickNode(BehaviorTree bt)
	{
	if (Condition.Invoke(bt))
	{
	return State = BTState.Success;
	}
	else
	{
	return State = BTState.Failure;
	}
	}
	}
	}

# 组合节点

选择节点：像 “或者”，从头到尾尝试子节点，直到有一个成功就返回成功
顺序节点：像 “并且”，从头到尾依次执行子节点，一旦失败就返回失败
并行节点：所有子节点都会依次执行一次
优先级节点：独立于行为树，不在根节点及其子节点下，不可中断，每轮都会检测，成功时中断其他所有节点，执行优先级节点
- 需要中断栈中所有的节点，所以它本身不能入栈
- 不论上次返回的状态是什么，优先级节点每帧都会从头开始依次执行过滤，如果优先级节点有多个子节点（过滤结构），那么先判断的节点会将后判断的节点打断（例如：死亡节点和攻击节点都在优先级节点中，并且死亡节点排在前。此时，即使攻击节点处于 Running 状态，死亡节点也会先判断，并在通过时将攻击节点中断）

选择节点

	using System.Collections.Generic;

	namespace BehaviorTree
	{
	/// <summary>
	/// 选择节点（只要一个子节点成功就算成功）
	/// </summary>
	public class SelectorNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private List<BTNode> children;
	/// <summary>
	/// 当前子节点索引
	/// </summary>
	private int currentIndex = 0;

	public SelectorNode()
	{
	children = new List<BTNode>();
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	children.Add(child);
	}

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	currentIndex = 0;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	BTNode child;

	while (currentIndex < children.Count)
	{
	child = children[currentIndex];

	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	child.ExitNode(bt);
	currentIndex = 0;
	return BTState.Success;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	currentIndex = 0;
	return BTState.Abort;

	case BTState.Failure:
	child.ExitNode(bt);
	currentIndex++;
	break;
	}
	}

	currentIndex = 0;
	return State = BTState.Failure;
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	currentIndex = 0;
	}
	}
	}

顺序节点

	using System.Collections.Generic;

	namespace BehaviorTree
	{
	/// <summary>
	/// 顺序节点（全部成功才算成功）
	/// </summary>
	public class SequenceNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private List<BTNode> children;
	/// <summary>
	/// 当前子节点索引
	/// </summary>
	private int currentIndex = 0;

	public SequenceNode()
	{
	children = new List<BTNode>();
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	children.Add(child);
	}

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	currentIndex = 0;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	BTNode child;

	while (currentIndex < children.Count)
	{
	child = children[currentIndex];

	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Failure:
	child.ExitNode(bt);
	currentIndex = 0;
	return BTState.Failure;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	currentIndex = 0;
	return BTState.Abort;

	case BTState.Success:
	child.ExitNode(bt);
	currentIndex++;
	break;
	}
	}

	currentIndex = 0;
	return State = BTState.Success;
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	currentIndex = 0;
	}
	}
	}

并行节点

	using System.Collections.Generic;

	namespace BehaviorTree
	{
	/// <summary>
	/// 并行节点（所有子节点都会依次执行一次）
	/// </summary>
	public class ParallelNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private List<BTNode> children;
	/// <summary>
	/// 当前子节点索引
	/// </summary>
	private int currentIndex = 0;

	public ParallelNode()
	{
	children = new List<BTNode>();
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	children.Add(child);
	}

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	currentIndex = 0;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	BTNode child;

	while (currentIndex < children.Count)
	{
	child = children[currentIndex];

	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	child.ExitNode(bt);
	currentIndex++;
	break;

	case BTState.Failure:
	child.ExitNode(bt);
	currentIndex++;
	break;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	currentIndex = 0;
	return BTState.Abort;
	}
	}

	currentIndex = 0;
	return State = BTState.Success;
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	currentIndex = 0;
	}
	}
	}

优先级节点

	using System.Collections.Generic;

	namespace BehaviorTree
	{
	/// <summary>
	/// 优先级节点（独立于行为树，不在根节点及其子节点下，不可中断，每轮都会检测，成功时中断其他所有节点，执行优先级节点）
	/// </summary>
	public class PriorityNode : ControlNodes
	{
	/// <summary>
	/// 过滤结构列表
	/// </summary>
	private List<BTFilter> filters;
	/// <summary>
	/// 是否执行过子节点
	/// </summary>
	private bool isTickedChild = false;

	public PriorityNode()
	{
	filters = new List<BTFilter>();
	}

	public override void AddChild(BTFilter filter)
	{
	base.AddChild(filter);
	filters.Add(filter);
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	foreach (var item in filters)
	{
	if (item.condition.TickNode(bt) == BTState.Success)
	{
	if (State != BTState.Running)
	{
	bt.AbortAll();
	item.child.EnterNode(bt);
	isTickedChild = true;
	}

	State = item.child.TickNode(bt);

	// 优先级节点不会被低级节点打断，所以这里不需要处理中断
	if (State != BTState.Running)
	{
	item.child.ExitNode(bt);
	isTickedChild = false;
	}

	return State;
	}
	else
	{
	if (isTickedChild)
	{
	item.child.Abort(bt);
	isTickedChild = false;
	}
	}
	}

	isTickedChild = false;
	return State = BTState.Failure;
	}
	}
	}

# 装饰节点

反转节点：如果子节点成功，返回失败；如果子节点失败，返回成功
重复节点：重复执行子节点
计时节点：用于控制子节点处于 Running 状态的时间
限制节点：限制子节点的总执行次数
过滤节点：每次执行都会先进行条件判断，以此决定是否执行子节点
成功节点：即使子节点返回失败，该节点也会返回成功
失败节点：即使子节点返回成功，该节点也会返回失败

反转节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 反转节点（如果子节点成功，返回失败；如果子节点失败，返回成功）
	/// </summary>
	public class InverterNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private BTNode child;

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	this.child = child;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	child.ExitNode(bt);
	return State = BTState.Failure;

	case BTState.Failure:
	child.ExitNode(bt);
	return State = BTState.Success;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	return BTState.Abort;

	default:
	child.ExitNode(bt);
	return State = BTState.Failure;
	}
	}
	}
	}

重复节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 重复节点（重复执行子节点）
	/// </summary>
	public class RepeaterNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private BTNode child;
	/// <summary>
	/// 子节点状态
	/// </summary>
	private BTState childState;

	public RepeaterNode()
	{
	childState = BTState.Success;
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	this.child = child;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	if (childState != BTState.Running)
	{
	child.EnterNode(bt);
	}

	childState = child.TickNode(bt);

	switch (childState)
	{
	case BTState.Failure:
	child.ExitNode(bt);
	return State = BTState.Failure;

	case BTState.Abort:
	child.Abort(bt);
	return State = BTState.Abort;

	default:
	break;
	}

	return State = BTState.Running;
	}
	}
	}

计时节点

	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 计时节点（用于控制子节点处于 Running 状态的时间）
	/// </summary>
	public class TimingNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private BTNode child;
	/// <summary>
	/// 最大时间
	/// </summary>
	private float maxTime;
	/// <summary>
	/// 当前时间
	/// </summary>
	private float currentTime = 0;

	public TimingNode(float time)
	{
	this.maxTime = time;
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	this.child = child;
	}

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	currentTime = 0;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	currentTime += Time.deltaTime;
	if (currentTime < maxTime)
	{
	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	child.ExitNode(bt);
	currentTime = 0;
	return BTState.Success;

	case BTState.Failure:
	child.ExitNode(bt);
	currentTime = 0;
	return BTState.Failure;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	currentTime = 0;
	return BTState.Abort;

	default:
	child.ExitNode(bt);
	currentTime = 0;
	return State = BTState.Success;
	}
	}
	else
	{
	child.ExitNode(bt);
	currentTime = 0;
	return State = BTState.Success;
	}
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	currentTime = 0;
	}
	}
	}

限制节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 限制节点（限制子节点的总执行次数）
	/// </summary>
	public class LimiterNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private BTNode child;
	/// <summary>
	/// 次数
	/// </summary>
	private int limitCount;
	/// <summary>
	/// 当前次数
	/// </summary>
	private int currentCount = 0;

	public LimiterNode(int limitCount)
	{
	this.limitCount = limitCount;
	currentCount = 0;
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	this.child = child;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	while (currentCount < limitCount)
	{
	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	currentCount++;
	return BTState.Success;

	case BTState.Failure:
	currentCount++;
	return BTState.Failure;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	return BTState.Abort;
	}
	}

	return State = BTState.Success;
	}
	}
	}

过滤节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 过滤节点（每次执行都会先进行条件判断）
	/// </summary>
	public class FilterNode : ControlNodes
	{
	/// <summary>
	/// 过滤结构
	/// </summary>
	private BTFilter filter;
	/// <summary>
	/// 是否执行过子节点
	/// </summary>
	private bool isTickedChild = false;

	public override void AddChild(BTFilter filter)
	{
	base.AddChild(filter);
	this.filter = filter;
	}

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	isTickedChild = false;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	if (filter.condition.TickNode(bt) == BTState.Success)
	{
	if (State != BTState.Running)
	{
	filter.child.EnterNode(bt);
	isTickedChild = true;
	}

	State = filter.child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	filter.child.ExitNode(bt);
	isTickedChild = false;
	return BTState.Success;

	case BTState.Failure:
	filter.child.ExitNode(bt);
	isTickedChild = false;
	return BTState.Failure;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	filter.child.Abort(bt);
	isTickedChild = false;
	return BTState.Abort;

	default:
	filter.child.ExitNode(bt);
	isTickedChild = false;
	return State = BTState.Failure;
	}
	}
	else
	{
	if (isTickedChild)
	{
	filter.child.Abort(bt);
	isTickedChild = false;
	return State = BTState.Abort;
	}
	return State = BTState.Failure;
	}
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	isTickedChild = false;
	}
	}
	}

成功节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 成功节点（即使子节点返回失败，该节点也会返回成功）
	/// </summary>
	public class SuccessNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private BTNode child;

	public SuccessNode()
	{
	State = BTState.Success;
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	this.child = child;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	child.ExitNode(bt);
	return BTState.Success;

	case BTState.Failure:
	child.ExitNode(bt);
	return State = BTState.Success;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	return BTState.Abort;

	default:
	child.ExitNode(bt);
	return State = BTState.Success;
	}
	}
	}
	}

失败节点

	namespace BehaviorTree
	{
	/// <summary>
	/// 失败节点（即使子节点返回成功，该节点也会返回失败）
	/// </summary>
	public class FailureNode : ControlNodes
	{
	/// <summary>
	/// 子节点
	/// </summary>
	private BTNode child;

	public FailureNode()
	{
	State = BTState.Failure;
	}

	public override void AddChild(BTNode child)
	{
	base.AddChild(child);
	this.child = child;
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	if (State != BTState.Running)
	{
	child.EnterNode(bt);
	}

	State = child.TickNode(bt);

	switch (State)
	{
	case BTState.Success:
	child.ExitNode(bt);
	return State = BTState.Failure;

	case BTState.Failure:
	child.ExitNode(bt);
	return BTState.Failure;

	case BTState.Running:
	return BTState.Running;

	case BTState.Abort:
	child.Abort(bt);
	return BTState.Abort;

	default:
	child.ExitNode(bt);
	return State = BTState.Failure;
	}
	}
	}
	}

# 创建工厂

配置规则

用 [number] 标识一个节点，例如： SelectorNode[0]
行为节点命名规则：{name} Behavior，例如： IdleBehavior
条件节命名规则：{name} Condition，例如： FoundTargetCondition
单独出现的节点（后面没有箭头）表示根节点，例如： SelectorNode[0]
SelectorNode 配置示例（ParallelNode、SequenceNode 同理）
SelectorNode[0]->SelectorNode[1]
SelectorNode[1]->IdleBehavior[0]
PriorityNode 包含多个过滤结构，不能作为其他节点的子节点，不需要单独声明，并且唯一，配置示例（FilterNode 仅有一个过滤结构）
PriorityNode[0]->{DeathCondition[0],DeadBehavior[0]}
PriorityNode[0]->{FoundTargetCondition[0],AttackBehavior[0]}
InverterNode 配置示例（其他常规装饰节点同理）
InverterNode[0]->FoundTargetCondition[0]
InverterNode[1]->IdleBehavior[0]
LimiterNode 在第一次声明时需要输入参数，格式 {5}，配置示例（TimingNode 同理）
SelectorNode[0]->LimiterNode[0]{5}
LimiterNode[0]->IdleBehavior[0] 或 LimiterNode[0]{5}->IdleBehavior[0]
想要共用同一个节点，只需要在配置时保持节点名和标记都相同即可

创建工厂

使用正则表达式检查配置是否正确
使用反射创建对象

	using Common;
	using System;
	using System.Collections.Generic;
	using System.Text.RegularExpressions;

	namespace BehaviorTree
	{
	/// <summary>
	/// 节点创建工厂
	/// </summary>
	public static class BTCreateFactory
	{
	/// <summary>
	/// 节点映射表，存储所有节点实例
	/// </summary>
	private static Dictionary<string, BTNode> nodeDic;
	/// <summary>
	/// Type 缓存
	/// </summary>
	private static Dictionary<string, Type> typeCache;
	/// <summary>
	/// 根节点的键值
	/// </summary>
	private static string rootID;
	/// <summary>
	/// 优先级节点的键值
	/// </summary>
	private static string priorityID;

	static BTCreateFactory()
	{
	nodeDic = new Dictionary<string, BTNode>();
	typeCache = new Dictionary<string, Type>();
	rootID = null;
	priorityID = null;
	}

	/// <summary>
	/// 构建行为树
	/// </summary>
	/// <param name="config"> 配置 & lt;/param>
	/// <param name="root"> 根节点 & lt;/param>
	/// <param name="priorityNode"> 优先级节点 & lt;/param>
	public static void BuildBehaviorTree(string config, out BTNode root, out BTNode priorityNode)
	{
	nodeDic.Clear();
	typeCache.Clear();
	rootID = null;
	priorityID = null;

	ConfigReader.ReadConfig(config, ReadLine);
	root = nodeDic[rootID];

	if (priorityID == null)
	{
	priorityNode = new PriorityNode();
	}
	else
	{
	priorityNode = nodeDic[priorityID];
	}
	}

	/// <summary>
	/// 读取一行配置
	/// </summary>
	/// <param name="line"></param>
	private static void ReadLine(string line)
	{
	line = line.Trim();

	if (string.IsNullOrEmpty(line))
	{
	return;
	}

	if (line.Contains("->"))
	{
	string[] parts = line.Split("->");

	if (parts[0].StartsWith("PriorityNode"))
	{
	if (priorityID == null)
	{
	priorityID = parts[0];
	}
	else if (priorityID != parts[0])
	{
	throw new Exception($"多个优先级节点: {line}");
	}
	}

	ControlNodes control = CreateNode(parts[0]) as ControlNodes;

	if (parts[1].StartsWith("PriorityNode"))
	{
	throw new Exception($"优先级节点不能作为子节点: {line}");
	}
	else if (parts[1].StartsWith("{"))
	{
	BTFilter filter = CreateFilter(parts[1]);
	control.AddChild(filter);
	}
	else
	{
	BTNode node = CreateNode(parts[1]);
	control.AddChild(node);
	}
	}
	else
	{
	if (rootID != null)
	{
	throw new Exception($"多个根节点: {line}");
	}

	rootID = line;
	CreateNode(line);
	}
	}

	/// <summary>
	/// 获取类型
	/// </summary>
	/// <param name="typeName"></param>
	/// <returns></returns>
	/// <exception cref="Exception"></exception>
	private static Type GetType(string typeName)
	{
	if (typeCache.ContainsKey(typeName))
	{
	return typeCache[typeName];
	}

	Type type = Type.GetType(typeName);

	if (type == null)
	{
	throw new Exception($"找不到类型: {typeName}");
	}

	typeCache.Add(typeName, type);

	return type;
	}

	/// <summary>
	/// 创建节点
	/// </summary>
	/// <param name="token"></param>
	/// <exception cref="Exception"></exception>
	private static BTNode CreateNode(string token)
	{
	if (nodeDic.ContainsKey(token))
	{
	return nodeDic[token];
	}

	Match match;
	Type type;
	BTNode node = null;
	string nodeToken;

	if ((match = Regex.Match(token, "^([A-Za-z]+)\\[\\d+\\]$")).Success)
	{
	nodeToken = match.Groups[1].Value;

	type = GetType($"BehaviorTree.{nodeToken}");
	node = Activator.CreateInstance(type) as BTNode;

	nodeDic.Add(token, node);

	return node;
	}
	else if ((match = Regex.Match(token, "^([A-Za-z]+)(\\[\\d+\\])\\{([0-9]+(?:[.][0-9]+){0,1})\\}$")).Success)
	{
	nodeToken = match.Groups[1].Value;
	string tagToken = match.Groups[2].Value;
	string parameterToken = match.Groups[3].Value;

	type = GetType($"BehaviorTree.{nodeToken}");
	if (int.TryParse(parameterToken, out int i))
	{
	node = Activator.CreateInstance(type, new object[] { i }) as BTNode;
	}
	else if (float.TryParse(parameterToken, out float f))
	{
	node = Activator.CreateInstance(type, new object[] { f }) as BTNode;
	}

	nodeDic.Add(nodeToken + tagToken, node);

	return node;
	}

	throw new Exception($"无效的格式: {token}");
	}

	/// <summary>
	/// 创建过滤结构
	/// </summary>
	/// <param name="token"></param>
	/// <returns></returns>
	private static BTFilter CreateFilter(string token)
	{
	Match match = Regex.Match(token, "^\\{([A-Za-z]+)\\[\\d+\\],([A-Za-z]+\\[\\d+\\](?:\\{(?:[0-9]+(?:[.][0-9]+){0,1})\\})?)\\}$");

	if (!match.Success)
	{
	throw new Exception($"无效的格式: {token}");
	}

	Type type = GetType($"BehaviorTree.{match.Groups[1].Value}");
	ConditionNode cond = Activator.CreateInstance(type) as ConditionNode;

	BTNode node = CreateNode(match.Groups[2].Value);

	return new BTFilter
	{
	condition = cond,
	child = node
	};
	}
	}
	}

# 行为树脚本

状态机会用到角色系统、技能系统、动画系统，本文用这个角色框架和这个技能框架为例
初始化行为树
为行为树提供入口
为节点提供黑板
使用变换组件助手类搜索目标并更新黑板
为行为节点提供基础的方法，例如：自动寻路

	using Character;
	using Common;
	using SkillSystem;
	using System;
	using System.Collections.Generic;
	using UnityEngine;
	using UnityEngine.AI;

	namespace BehaviorTree
	{
	/// <summary>
	/// 行为树
	/// </summary>
	[RequireComponent(typeof(NavMeshAgent), typeof(CharacterStatus), typeof(CharacterSkillSystemNPC))]
	public class BehaviorTree : MonoBehaviour
	{
	// 本文使用的是手动填写配置
	// 想要通过配置表自动填写数据，只需要额外写一个类实现读取和配置数据，然后在 ConfigBT () 中调用即可
	/// <summary>
	/// 行为树数据（黑板）
	/// </summary>
	public BTBlackboard blackboard;
	/// <summary>
	/// 导航
	/// </summary>
	private NavMeshAgent navigation;

	private void Awake()
	{
	blackboard.character = this.GetComponent<CharacterStatus>();
	blackboard.anim = this.GetComponentInChildren<Animator>();
	blackboard.npcSkill = this.GetComponent<CharacterSkillSystemNPC>();
	navigation = GetComponent<NavMeshAgent>();
	blackboard.interruptions = new List<Func<bool>>();
	}

	private void Start()
	{
	blackboard.nodeStack = new Stack<BTNode>();
	SetParameters();
	ConfigBT();
	}

	private void Update()
	{
	SearchTarget();
	Tick();
	}

	/// <summary>
	/// 设置参数
	/// </summary>
	private void SetParameters()
	{
	blackboard.foundTargets = null;
	blackboard.currentSkill = null;
	}

	/// <summary>
	/// 配置行为树
	/// </summary>
	private void ConfigBT()
	{
	BTCreateFactory.BuildBehaviorTree(
	blackboard.nodeAsset.config,
	out blackboard.root,
	out blackboard.priorityNode
	);
	}

	/// <summary>
	/// 执行节点
	/// </summary>
	private void Tick()
	{
	// 外部中断
	foreach (var item in blackboard.interruptions)
	{
	if (item.Invoke())
	{
	AbortAll();
	return;
	}
	}

	BTState state;

	// 优先级节点
	state = blackboard.priorityNode.TickNode(this);
	if (state == BTState.Success \|\| state == BTState.Running)
	{
	return;
	}

	// 根节点
	if (blackboard.root.State != BTState.Running)
	{
	blackboard.root.EnterNode(this);
	}

	state = blackboard.root.TickNode(this);

	if (state != BTState.Running)
	{
	blackboard.root.ExitNode(this);
	}
	}

	/// <summary>
	/// 中断所有节点
	/// </summary>
	public void AbortAll()
	{
	BTNode node = blackboard.Current;
	while (node != null)
	{
	node.Abort(this);
	node = blackboard.Current;
	}
	}

	/// <summary>
	/// 搜索目标
	/// </summary>
	public void SearchTarget()
	{
	bool ignoreWalls = false;
	BTNode node = blackboard.Current;

	if (node != null && node is BehaviorNode)
	{
	ignoreWalls = (node as BehaviorNode).IgnoreWalls;
	}

	List<Transform> targets = this.transform.SelectTargets(blackboard.viewDistance, this.transform.forward, blackboard.viewAngle, blackboard.targetTags);
	targets = targets.FindAll(t => t.GetComponent<CharacterStatus>().HP > 0);
	if (targets.Count == 0)
	{
	blackboard.foundTargets = null;
	return;
	}

	if (ignoreWalls)
	{
	blackboard.foundTargets = targets.ToArray();
	return;
	}

	RaycastHit hit;
	List<Transform> validTargets = new List<Transform>();
	foreach (var item in targets)
	{
	Physics.Raycast(this.transform.position, item.position + Vector3.up * 0.5f - this.transform.position, out hit, blackboard.viewDistance);
	if (hit.transform != null && hit.transform.gameObject == item.gameObject)
	{
	validTargets.Add(item);
	}
	}

	if (validTargets.Count != 0)
	{
	blackboard.foundTargets = validTargets.ToArray();
	}
	else
	{
	blackboard.foundTargets = null;
	}
	}

	/// <summary>
	/// 自动寻路
	/// </summary>
	/// <param name="targetPosition"> 目标位置 & lt;/param>
	/// <param name="stoppingDistance"> 停止移动的距离 & lt;/param>
	/// <param name="speed"> 移动速度 & lt;/param>
	public void MoveToTarget(Vector3 targetPosition, float stoppingDistance, float speed)
	{
	navigation.stoppingDistance = stoppingDistance;
	navigation.speed = speed;
	navigation.SetDestination(targetPosition);
	}
	}
	}

# 使用方法

# 具体的条件节点

发现目标

	using System;

	namespace BehaviorTree
	{
	/// <summary>
	/// 发现目标
	/// </summary>
	public class FoundTargetCondition : ConditionNode
	{
	protected override Func<BehaviorTree, bool> Condition => (bt) =>
	{
	return bt.blackboard.foundTargets != null && bt.blackboard.foundTargets.Length > 0;
	};

	}
	}

丢失目标

	using System;

	namespace BehaviorTree
	{
	/// <summary>
	/// 丢失目标
	/// </summary>
	public class LostTargetCondition : ConditionNode
	{
	protected override Func<BehaviorTree, bool> Condition => (bt) =>
	{
	return bt.blackboard.foundTargets == null \|\| bt.blackboard.foundTargets.Length == 0;
	};

	}
	}

死亡条件

	using System;

	namespace BehaviorTree
	{
	/// <summary>
	/// 死亡条件
	/// </summary>
	public class DeathCondition : ConditionNode
	{
	protected override Func<BehaviorTree, bool> Condition => (bt) =>
	{
	return bt.blackboard.character.HP <= 0;
	};

	}
	}

# 具体的行为节点

追逐行为

	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 追逐行为
	/// </summary>
	public class PursuitBehavior : BehaviorNode
	{
	public override bool IgnoreWalls => true;

	public override BTState TickNode(BehaviorTree bt)
	{
	if (Vector3.Distance(bt.transform.position, bt.blackboard.foundTargets[0].position) <= bt.blackboard.attackNodeDistance)
	{
	return BTState.Success;
	}

	bt.blackboard.anim.SetBool(bt.blackboard.character.PlayerAnimationParameter.Run, true);
	bt.MoveToTarget(bt.blackboard.foundTargets[0].position, bt.blackboard.attackNodeDistance, bt.blackboard.moveSpeed);

	return BTState.Running;
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	bt.MoveToTarget(bt.transform.position, 1, bt.blackboard.moveSpeed);
	}
	}
	}

巡逻行为

	using System;
	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 巡逻行为
	/// </summary>
	public class PatrolBehavior : BehaviorNode
	{
	public override bool IgnoreWalls => false;

	/// <summary>
	/// 路点数组的索引
	/// </summary>
	private int Index = 0;

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	bt.blackboard.anim.SetBool(bt.blackboard.character.PlayerAnimationParameter.Idle, true);
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	switch (bt.blackboard.patrolMode)
	{
	case BTPatrolModes.None:
	return NoneMode(bt);

	case BTPatrolModes.Once:
	return OnceMode(bt);

	case BTPatrolModes.Loop:
	return LoopMode(bt);

	case BTPatrolModes.RoundTrip:
	return RoundTripMode(bt);

	default:
	return BTState.Failure;
	}
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	bt.MoveToTarget(bt.transform.position, 1, bt.blackboard.moveSpeed);
	}

	/// <summary>
	/// 无巡逻模式
	/// </summary>
	private BTState NoneMode(BehaviorTree bt)
	{
	return BTState.Failure;
	}

	/// <summary>
	/// 单次模式
	/// </summary>
	private BTState OnceMode(BehaviorTree bt)
	{
	if (Index >= bt.blackboard.wayPoints.Length)
	{
	return BTState.Success;
	}
	if (Vector3.Distance(bt.transform.position, bt.blackboard.wayPoints[Index].position) <= bt.blackboard.patrolEffect)
	{
	Index++;
	}
	bt.MoveToTarget(bt.blackboard.wayPoints[Index].position, 0, bt.blackboard.moveSpeed);

	return BTState.Running;
	}

	/// <summary>
	/// 循环模式
	/// </summary>
	private BTState LoopMode(BehaviorTree bt)
	{
	if (Vector3.Distance(bt.transform.position, bt.blackboard.wayPoints[Index].position) <= bt.blackboard.patrolEffect)
	{
	Index = (Index + 1) % bt.blackboard.wayPoints.Length;
	}
	bt.MoveToTarget(bt.blackboard.wayPoints[Index].position, 0, bt.blackboard.moveSpeed);

	return BTState.Running;
	}

	/// <summary>
	/// 往返模式
	/// </summary>
	private BTState RoundTripMode(BehaviorTree bt)
	{
	if (Vector3.Distance(bt.transform.position, bt.blackboard.wayPoints[Index].position) <= bt.blackboard.patrolEffect)
	{
	if (Index >= bt.blackboard.wayPoints.Length - 1)
	{
	Array.Reverse(bt.blackboard.wayPoints);
	Index++;
	}
	Index = (Index + 1) % bt.blackboard.wayPoints.Length;
	}
	bt.MoveToTarget(bt.blackboard.wayPoints[Index].position, 0, bt.blackboard.moveSpeed);

	return BTState.Running;
	}
	}
	}

闲置行为

	namespace BehaviorTree
	{
	/// <summary>
	/// 闲置行为
	/// </summary>
	public class IdleBehavior : BehaviorNode
	{
	public override bool IgnoreWalls => false;

	public override BTState TickNode(BehaviorTree bt)
	{
	bt.blackboard.anim.SetBool(bt.blackboard.character.PlayerAnimationParameter.Idle, true);
	return BTState.Success;
	}
	}
	}

死亡行为

	namespace BehaviorTree
	{
	/// <summary>
	/// 死亡行为
	/// </summary>
	public class DeadBehavior : BehaviorNode
	{
	public override bool IgnoreWalls => true;

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);
	bt.blackboard.anim.SetBool(bt.blackboard.character.PlayerAnimationParameter.Die, true);
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	return BTState.Running;
	}
	}
	}

攻击行为

	using UnityEngine;

	namespace BehaviorTree
	{
	/// <summary>
	/// 攻击行为
	/// </summary>
	public class AttackBehavior : BehaviorNode
	{
	public override bool IgnoreWalls => true;

	/// <summary>
	/// 计时器
	/// </summary>
	private float timer = 0;
	/// <summary>
	/// 用于判断攻击距离
	/// </summary>
	private float judgeAttackDistance = 0;
	/// <summary>
	/// 已经初始化
	/// </summary>
	private bool isInit = false;

	public override void EnterNode(BehaviorTree bt)
	{
	base.EnterNode(bt);

	if (isInit == false)
	{
	Init(bt);
	}

	if (bt.blackboard.currentSkill == null)
	{
	GetSkill(bt);
	}
	}

	public override BTState TickNode(BehaviorTree bt)
	{
	return Attack(bt);
	}

	public override void ExitNode(BehaviorTree bt)
	{
	base.ExitNode(bt);
	bt.MoveToTarget(bt.transform.position, 1, bt.blackboard.moveSpeed);
	}

	/// <summary>
	/// 初始化
	/// </summary>
	/// <param name="bt"></param>
	private void Init(BehaviorTree bt)
	{
	timer = bt.blackboard.attackTimeInterval;
	isInit = true;
	}

	/// <summary>
	/// 获取技能
	/// </summary>
	/// <param name="bt"></param>
	private void GetSkill(BehaviorTree bt)
	{
	bt.blackboard.currentSkill = bt.blackboard.npcSkill.GetRandomSkillData();
	if (bt.blackboard.currentSkill == null)
	{
	return;
	}

	if (bt.blackboard.currentSkill.MoveDistance != 0)
	{
	judgeAttackDistance = bt.blackboard.currentSkill.MoveDistance;
	}
	else
	{
	judgeAttackDistance = bt.blackboard.currentSkill.AttackDistance;
	}

	bt.blackboard.attackNodeDistance = judgeAttackDistance;
	}

	/// <summary>
	/// 攻击
	/// </summary>
	/// <param name="bt"></param>
	private BTState Attack(BehaviorTree bt)
	{
	// 看向目标
	bt.transform.LookAt(bt.blackboard.foundTargets[0]);

	timer += Time.deltaTime;
	if (timer >= bt.blackboard.attackTimeInterval)
	{
	if (bt.blackboard.currentSkill == null)
	{
	return BTState.Failure;
	}

	if (Vector3.Distance(bt.transform.position, bt.blackboard.foundTargets[0].position) <= judgeAttackDistance)
	{
	// 放技能
	bt.blackboard.npcSkill.UseSkill(bt.blackboard.currentSkill.SkillID);
	SetPosition(bt);

	GetSkill(bt);
	timer = 0;

	return BTState.Success;
	}
	else
	{
	return BTState.Failure;
	}
	}

	bt.blackboard.anim.SetBool(bt.blackboard.character.PlayerAnimationParameter.Idle, true);
	return BTState.Running;
	}

	/// <summary>
	/// 设置释放位置
	/// </summary>
	/// <param name="bt"></param>
	private void SetPosition(BehaviorTree bt)
	{
	bt.blackboard.npcSkill.SetPosition(bt.transform.position, bt.transform.rotation);
	}
	}
	}

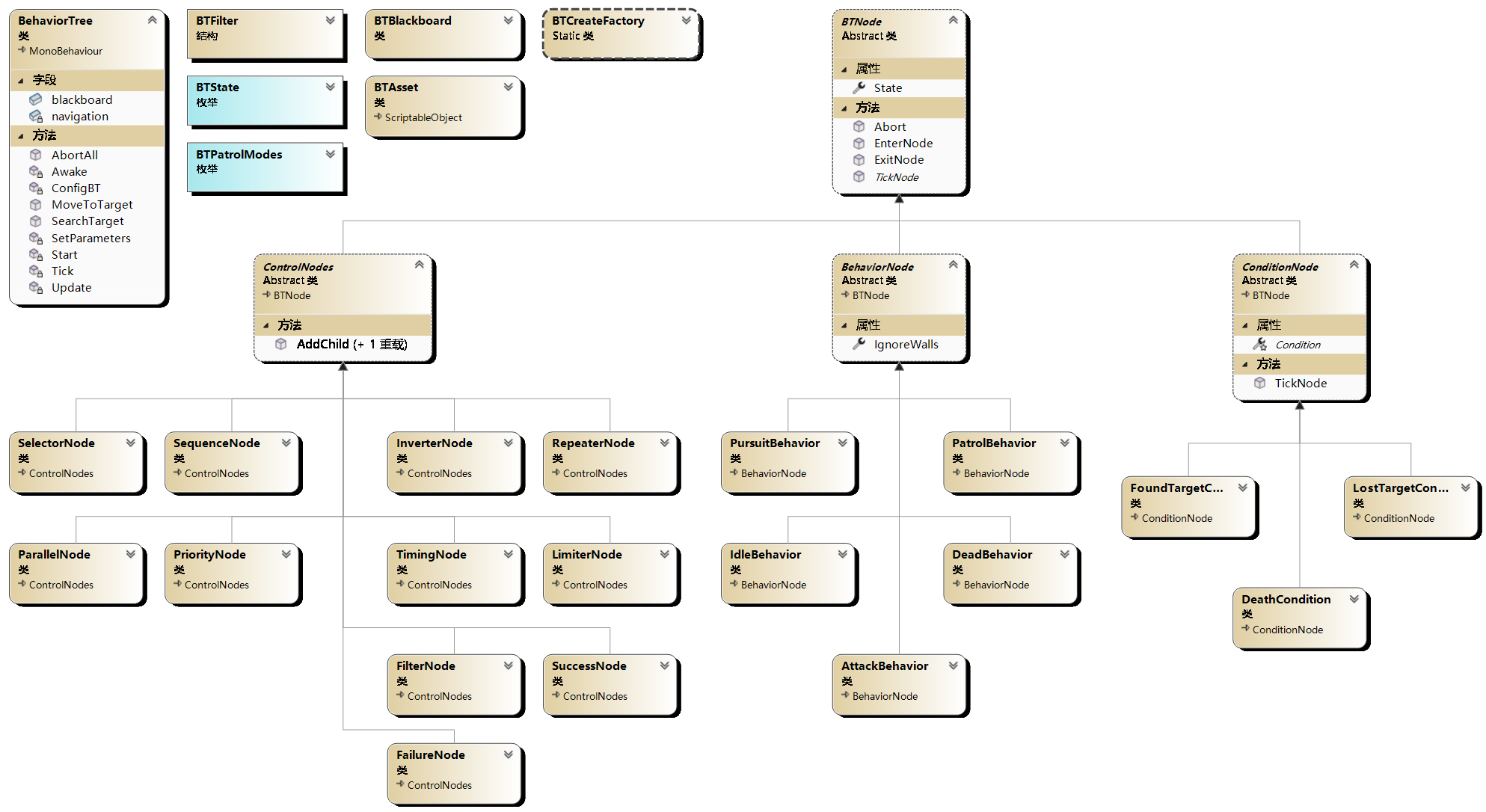

# 类图

# 测试

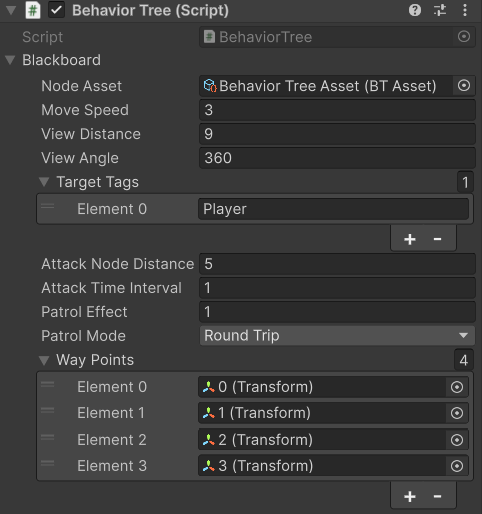

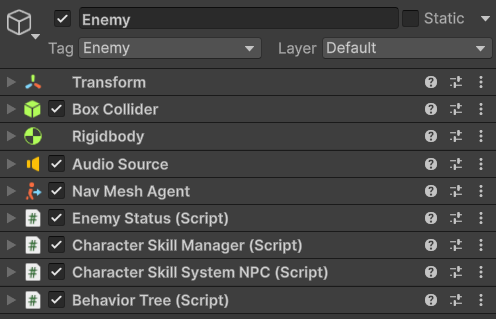

配置

	SelectorNode[0]
	SelectorNode[0]->FilterNode[0]
	SelectorNode[0]->FilterNode[1]
	SelectorNode[0]->FilterNode[2]
	SelectorNode[0]->IdleBehavior[0]

	PriorityNode[0]->{DeathCondition[0],DeadBehavior[0]}

	FilterNode[0]->{FoundTargetCondition[0],AttackBehavior[0]}
	FilterNode[1]->{FoundTargetCondition[1],PursuitBehavior[0]}
	FilterNode[2]->{LostTargetCondition[0],PatrolBehavior[0]}
