# 观前提醒

项目会在 GitHub 中开源，链接：https://github.com/Maikire/Unity/tree/main/UnityFramework/A simple ARPG character framework

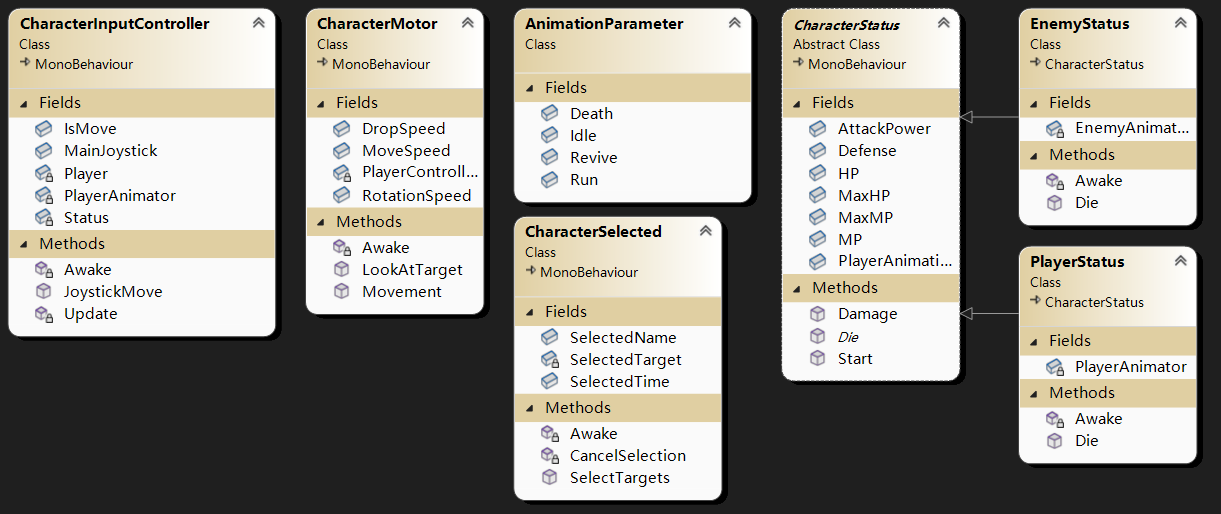

# 框架设计

角色状态类：角色的基础信息和基础行为
角色的动画：因为动画参数的名字可能会改变，所以单独做一个类储存名字
角色的移动方式：提供移动的方法，由输入控制或技能系统调用
输入控制：获取玩家的输入

# 代码

# 动画信息类

储存动画的名字

AnimationParameter

	using System;
	using UnityEngine;

	namespace CharacterSystem
	{
	// 可序列化，将当前对象 “嵌入” 到脚本后，可以在编辑器中显示属性
	// 对应的，这将生成一个对象，不需要手动 new AnimationParameter ()

	/// <summary>
	/// AnimationParameter
	/// </summary>
	[Serializable]
	public class AnimationParameter
	{
	[Tooltip("走路")]
	public string Walk = "Walk";

	[Tooltip("跑步")]
	public string Run = "Run";

	[Tooltip("跳跃")]
	public string Jump = "Jump";

	[Tooltip("二次跳跃")]
	public string DoubleJump = "DoubleJump";

	[Tooltip("滑行")]
	public string Slide = "Slide";

	[Tooltip("贴墙跳跃")]
	public string WallJump = "WallJump";

	[Tooltip("坠落")]
	public string Fall = "Fall";

	[Tooltip("冲刺")]
	public string Dash = "Dash";

	[Tooltip("闲置")]
	public string Idle = "Idle";

	[Tooltip("受伤")]
	public string Injure = "Injure";

	[Tooltip("死亡")]
	public string Die = "Die";

	[Tooltip("复活")]
	public string Revive = "Revive";
	}
	}

# 角色状态类

基础信息和基础行为

CharacterStatus

	using UnityEngine;

	namespace CharacterSystem
	{
	/// <summary>
	/// CharacterStatus
	/// </summary>
	public abstract class CharacterStatus : MonoBehaviour
	{
	[Tooltip("动画信息")]
	public AnimationParameter PlayerAnimationParameter;
	[Tooltip("最大生命值")]
	public float MaxHP = 500;
	[Tooltip("生命值")]
	public float HP = 500;
	[Tooltip("最大魔力")]
	public float MaxMP = 500;
	[Tooltip("魔力")]
	public float MP = 500;
	[Tooltip("防御力")]
	public float Defense = 5;
	[Tooltip("攻击力")]
	public float AttackPower = 10;

	/// <summary>
	///true: 死亡
	/// </summary>
	protected bool isDie = false;

	public void Start()
	{
	HP = MaxHP;
	MP = MaxMP;
	}

	/// <summary>
	/// 受伤
	/// </summary>
	/// <param name="damage"> 伤害值 & lt;/param>
	public virtual void Damage(float damage)
	{
	if (isDie) return;

	float temp = damage - Defense;

	if (temp > 0)
	{
	HP -= temp;
	}

	if (HP <= 0)
	{
	Die();
	}
	}

	/// <summary>
	/// 死亡
	/// </summary>
	public virtual void Die()
	{
	isDie = true;
	}
	}
	}

# 角色的移动方式

在这里实现真正让角色移动的方法，实现各种移动模式的物理和运动计算
由输入系统和技能系统控制能不能移动

提供移动的方法

CharacterMotor

	using UnityEngine;

	namespace CharacterSystem
	{
	/// <summary>
	/// 移动
	/// </summary>
	[RequireComponent(typeof(CharacterController))]
	public class PlayerMovement : MonoBehaviour
	{
	[Tooltip("移动速度")]
	public float moveSpeed = 4f;
	[Tooltip("跳跃高度")]
	public float jumpHeight = 1f;
	[Tooltip("旋转速度")]
	public float rotationSpeed = 15;
	[Tooltip("重力")]
	public float gravity = -30f;
	[Tooltip("地面检测半径")]
	public float groundCheckRadius = 0.3f;
	[Tooltip("地面检测图层")]
	public LayerMask groundLayer = ~0;

	[Tooltip("允许的最大跳跃次数")]
	public int maxJumpCount = 2;
	/// <summary>
	/// 当前跳跃次数
	/// </summary>
	private int jumpCount = 0;

	/// <summary>
	/// 是否在地面上
	/// </summary>
	public bool IsGrounded { get { return isGrounded; } }
	/// <summary>
	/// 是否在地面上
	/// </summary>
	private bool isGrounded;

	/// <summary>
	/// 待处理的移动输入
	/// </summary>
	private Vector3 pendingMoveInput;
	/// <summary>
	/// 速度
	/// </summary>
	private Vector3 velocity;

	private CharacterController controller;
	private Transform cameraTransform;

	private void Start()
	{
	controller = this.GetComponent<CharacterController>();
	cameraTransform = this.GetComponentInChildren<Camera>().transform;

	rotationSpeed *= 10;
	velocity.y = -10f;
	}

	private void Update()
	{
	CheckGrounded();
	ApplyGravity();
	ApplyMovement();

	pendingMoveInput = Vector3.zero;
	}

	/// <summary>
	/// 移动角色
	/// </summary>
	/// <param name="direction"></param>
	public void Move(Vector3 direction)
	{
	pendingMoveInput = Vector3.ClampMagnitude(direction, 1f);
	}

	/// <summary>
	/// 旋转角色和摄像机
	/// </summary>
	/// <param name="direction"></param>
	public void Look(Vector3 direction)
	{
	if (direction.sqrMagnitude > 1f)
	{
	direction.Normalize();
	}

	Vector3 targetRotY = this.transform.eulerAngles + Vector3.up * direction.y;
	this.transform.rotation = Quaternion.Slerp(
	this.transform.rotation,
	Quaternion.Euler(targetRotY),
	rotationSpeed * Time.deltaTime
	);

	float eulerX = cameraTransform.eulerAngles.x;
	if (eulerX > 180f)
	{
	eulerX -= 360f;
	}

	Vector3 targetRotX = Vector3.right * (eulerX + direction.x) + Vector3.up * cameraTransform.eulerAngles.y;
	targetRotX.x = Mathf.Clamp(targetRotX.x, -90f, 90f);

	cameraTransform.rotation = Quaternion.Slerp(
	cameraTransform.rotation,
	Quaternion.Euler(targetRotX),
	rotationSpeed * Time.deltaTime
	);
	}

	/// <summary>
	/// 旋转视角
	/// </summary>
	/// <param name="direction"></param>
	public void Look(Vector3 direction, int a = 1)
	{
	// Y 轴
	Vector3 targetRotY = this.transform.eulerAngles + Vector3.up * direction.y;
	this.transform.rotation = Quaternion.Slerp(
	this.transform.rotation,
	Quaternion.Euler(targetRotY),
	rotationSpeed * Time.deltaTime
	);

	// X 轴
	float ex = cameraTransform.eulerAngles.x;
	if (ex > 180)
	{
	ex -= 360;
	}

	Vector3 targetRotX = Vector3.right * (ex + direction.x) + Vector3.up * cameraTransform.eulerAngles.y;
	if (targetRotX.x <= -90)
	{
	targetRotX.x = -90;
	}
	else if (targetRotX.x >= 90)
	{
	targetRotX.x = 90;
	}

	cameraTransform.rotation = Quaternion.Slerp(
	cameraTransform.rotation,
	Quaternion.Euler(targetRotX),
	rotationSpeed * Time.deltaTime
	);
	}

	/// <summary>
	/// 跳跃
	/// </summary>
	public void Jump()
	{
	if (isGrounded)
	{
	jumpCount = 0;
	}
	else if (jumpCount == 0)
	{
	// 如果角色未跳跃且不在地面上（例如走下边缘掉落），消耗掉第一次跳跃
	jumpCount = 1;
	}

	if (jumpCount < maxJumpCount)
	{
	velocity.y = Mathf.Sqrt(-2f * gravity * jumpHeight);
	jumpCount++;
	isGrounded = false;
	}
	}

	/// <summary>
	/// 检查角色是否在地面上
	/// </summary>
	private void CheckGrounded()
	{
	isGrounded =
	controller.isGrounded \|\|
	Physics.CheckSphere(this.transform.position, groundCheckRadius, groundLayer);

	if (isGrounded && velocity.y < 0f)
	{
	velocity.y = -10f;
	jumpCount = 0;
	}
	}

	/// <summary>
	/// 应用重力
	/// </summary>
	private void ApplyGravity()
	{
	if (!isGrounded)
	{
	velocity.y += gravity * Time.deltaTime;
	}
	}

	/// <summary>
	/// 应用移动输入
	/// </summary>
	private void ApplyMovement()
	{
	Vector3 move = pendingMoveInput;
	if (move.sqrMagnitude > 0f)
	{
	move = Quaternion.Euler(0f, this.transform.eulerAngles.y, 0f) * move;
	}

	velocity.x = move.x * moveSpeed;
	velocity.z = move.z * moveSpeed;

	Vector3 displacement = velocity * Time.deltaTime;

	controller.Move(displacement);
	}
	}
	}

# 输入控制

处理玩家的输入

CharacterInputController

	using UnityEngine;
	using UnityEngine.InputSystem;

	namespace CharacterSystem
	{
	/// <summary>
	/// 角色控制
	/// </summary>
	[RequireComponent(typeof(PlayerMovement))]
	public class PlayerInputController : MonoBehaviour
	{
	private PlayerMovement playerMovement;
	private PlayerInput playerInput;
	private InputActionAsset actionAsset;
	private InputActionMap actionMap_Player;
	private InputActionMap actionMap_UI;
	private InputAction moveAction;
	private InputAction lookAction;
	private InputAction jumpAction;
	private InputAction escapeAction;

	protected void Awake()
	{
	playerMovement = this.GetComponent<PlayerMovement>();
	playerInput = this.GetComponent<PlayerInput>();
	}

	protected void Start()
	{
	Config();
	AddEvent();
	}

	protected void Update()
	{
	if (actionMap_Player.enabled)
	{
	Move();
	Look();
	}
	}

	private void OnDestroy()
	{
	RemoveEvent();
	}

	/// <summary>
	/// 配置
	/// </summary>
	private void Config()
	{
	actionAsset = playerInput.actions;
	actionMap_Player = actionAsset.FindActionMap("Player", false);
	actionMap_UI = actionAsset.FindActionMap("UI", false);

	foreach (var item in actionAsset.actionMaps)
	{
	item.Disable();
	}

	actionMap_Player.Enable();
	//actionMap_UI.Enable();

	moveAction = actionMap_Player.FindAction("Move", false);
	lookAction = actionMap_Player.FindAction("Look", false);
	jumpAction = actionMap_Player.FindAction("Jump", false);
	escapeAction = actionMap_Player.FindAction("Escape", false);
	}

	/// <summary>
	/// 添加事件
	/// </summary>
	private void AddEvent()
	{
	jumpAction.performed += OnJump;
	escapeAction.performed += OnEscape;
	}

	private void RemoveEvent()
	{
	jumpAction.performed -= OnJump;
	escapeAction.performed -= OnEscape;
	}

	/// <summary>
	/// 移动
	/// </summary>
	public void Move()
	{
	Vector2 moveVector = moveAction.ReadValue<Vector2>();

	// 如果只需要水平方向的移动，就只取 x 轴
	//Vector2 direction = Vector2.right * moveVector;
	Vector3 direction = new Vector3(moveVector.x, 0, moveVector.y);

	playerMovement.Move(direction);
	}

	/// <summary>
	/// 旋转视角
	/// </summary>
	/// <param name="context"></param>
	private void Look()
	{
	Vector2 lookVector = lookAction.ReadValue<Vector2>();
	Vector3 direction = new Vector3(-lookVector.y, lookVector.x, 0);
	direction.Normalize();

	playerMovement.Look(direction, 2);
	}

	/// <summary>
	/// 跳跃
	/// </summary>
	/// <param name="context"></param>
	private void OnJump(InputAction.CallbackContext context)
	{
	playerMovement.Jump();
	}

	/// <summary>
	/// ESC
	/// </summary>
	/// <param name="context"></param>
	private void OnEscape(InputAction.CallbackContext context)
	{
	CursorController.Instance.Escape(playerInput.currentControlScheme);
	}
	}
	}

# 玩家状态类

继承角色状态类

代码如下：

PlayerStatus

	namespace CharacterSystem
	{
	/// <summary>
	/// Player
	/// </summary>
	public class PlayerStatus : CharacterStatus
	{
	public override void Die()
	{
	base.Die();
	}
	}
	}

# 敌人状态类

继承角色状态类

代码如下：

EnemyStatus

	using System.Collections;
	using UnityEngine;

	namespace CharacterSystem
	{
	/// <summary>
	/// EnemyStatus
	/// </summary>
	public class EnemyStatus : CharacterStatus
	{
	[Tooltip("受伤声音")]
	public AudioClip HurtAudio;

	private SpriteRenderer sprite;
	private AudioSource audioSource;

	private void Awake()
	{
	sprite = this.GetComponentInChildren<SpriteRenderer>();
	audioSource = this.GetComponent<AudioSource>();
	}

	public override void Damage(float damage)
	{
	base.Damage(damage);
	this.StartCoroutine(Hurt());
	}

	/// <summary>
	/// Hurt
	/// </summary>
	/// <returns></returns>
	private IEnumerator Hurt()
	{
	sprite.color = new Color(0.5f, 0.5f, 0.5f);
	audioSource.PlayOneShot(HurtAudio);

	yield return new WaitForSeconds(0.06f);

	sprite.color = Color.white;
	}
	}
	}

# 其他

隐藏鼠标指针

代码如下：

CursorController

	using Common;
	using UnityEngine;

	namespace CharacterSystem
	{
	/// <summary>
	/// 鼠标指针控制
	/// </summary>
	public class CursorController : MonoSingleton<CursorController>
	{
	/// <summary>
	///true: 打开 UI
	/// </summary>
	private bool isUI = false;

	private void Start()
	{
	Cursor.visible = false;
	Cursor.lockState = CursorLockMode.Locked;
	}

	/// <summary>
	/// ESC
	/// </summary>
	/// <param name="currentControlScheme"></param>
	public void Escape(string currentControlScheme)
	{
	if (currentControlScheme == "Keyboard&Mouse")
	{
	if (isUI)
	{
	Cursor.visible = false;
	Cursor.lockState = CursorLockMode.Locked;
	}
	else
	{
	Cursor.visible = true;
	Cursor.lockState = CursorLockMode.None;
	}
	}

	isUI = !isUI;
	}
	}
	}
