# 黑板效果

在 Unity 中实现黑板的基本功能，包括画线和擦除。

由于 Unity 有更新间隔再加上输入设备也有回报率，我们能获得的只有移动轨迹中的离散点。画线的基本思想就是将这些离散的点连成一条线。连线的方法有很多种，其中最简单的做法就是将每帧获得的点与上一帧获得的点连成直线。最后再加上简单的边缘平滑就可以做到画线的效果了。

技术上使用 CSharp + RenderTexture + ComputeShader

# 代码

# 使用 Compute Shader 计算像素并画线

  • 边缘平滑使用 smoothstep
  • 用线性插值实现颜色平滑过度
    • 这一帧的终点就是下一帧的起点，这会使线段中间那些点进行两次线性插值，从而出现凸起。为了消除这个凸起，可以在中间点进行线性插值时降低边缘平滑的长度
#pragma kernel CSMain
// 目标 RT
RWTexture2D<float4> _DrawingTex;
// 原贴图 RT
RWTexture2D<float4> _SourceTex;
// 局部更新的偏移量
uint2 _Offset;
// 前二帧的坐标
float2 _StartUV;
// 这一帧的坐标
float2 _EndUV;
// 笔触半径
float _BrushRadius;
// 笔触颜色
float4 _BrushColor;
// 边缘平滑
float _EdgeSoftness;
// 是否为擦除模式
bool _IsEraser;
// 简单的边缘平滑
float capsuleAA(float2 p, float2 a, float2 b)
{
    float2 ap = p - a;
    float2 ab = b - a;

    // 计算投影比例
    float h = saturate(dot(ap, ab) / dot(ab, ab));

    // 计算点到线段的最短距离
    float d = length(ap - ab * h);

    // smoothstep(min, max, x)
    //x < min 时 返回 0
    //x > max 时 返回 1
    //x 处于 [min, max] 时，返回 0 到 1 的平滑过渡

    float aa;
    if (length(ap) < _BrushRadius + _EdgeSoftness)
    {
        aa = 1 - smoothstep(_BrushRadius, _BrushRadius + _EdgeSoftness * 0.6, d);
    }
    else
    {
        aa = 1 - smoothstep(_BrushRadius, _BrushRadius + _EdgeSoftness, d);
        aa = aa * aa;
    }

    return aa;
}
// 着色
void Draw(uint2 pixelPos, float aa)
{
    if (_IsEraser)
    {
        _DrawingTex[pixelPos] = lerp(_DrawingTex[pixelPos], _SourceTex[pixelPos], aa);
    }
    else
    {
        _DrawingTex[pixelPos] = lerp(_DrawingTex[pixelPos], _BrushColor, aa);
    }
}
[numthreads(8, 8, 1)]
void CSMain(uint3 id : SV_DispatchThreadID)
{
    uint2 pixelPos = id.xy + _Offset;

    uint width, height;
    _DrawingTex.GetDimensions(width, height);

    // 防止溢出贴图范围
    if (pixelPos.x >= width || pixelPos.y >= height)
    {
        return;
    }

    float2 p = float2(pixelPos);
    float2 a = _StartUV * float2(width, height);
    float2 b = _EndUV * float2(width, height);

    float aa = capsuleAA(p, a, b);
    Draw(pixelPos, aa);
}
# CSharp 实现参数传递
  • 创建 RenderTexture 贴图
  • 计算包围盒：仅更新线段周围的像素，这样可以降低性能消耗
using System;
using UnityEngine;
namespace Default
{
    /// <summary>
    /// BlackboardWriterCS
    /// </summary>
    public class BlackboardWriter : MonoBehaviour
    {
        [Tooltip("计算着色器")]
        public ComputeShader blackboardCompute;
        [Tooltip("材质")]
        public Material blackboardMaterial;
        [Tooltip("RT 大小")]
        public int textureSize = 2048;
        [Tooltip("笔刷颜色")]
        public Color brushColor = Color.white;
        [Tooltip("笔刷大小")]
        public float brushRadius = 10;
        [Tooltip("橡皮大小")]
        public float eraserRadius = 30;
        [Tooltip("边缘平滑")]
        public float edgeSoftness = 4;
        private Texture sourceMap;
        private RenderTexture drawingRT;
        private RenderTexture sourceRT;
        private int kernelIndex;
        private Vector2 startUV;
        private bool isFirstFrame = true;
        private void Start()
        {
            drawingRT = new RenderTexture
            (
                textureSize,
                textureSize,
                0,
                RenderTextureFormat.ARGB32,
                RenderTextureReadWrite.sRGB
            );
            drawingRT.filterMode = FilterMode.Point;
            drawingRT.enableRandomWrite = true;
            drawingRT.useMipMap = false;
            drawingRT.autoGenerateMips = false;
            drawingRT.Create();
            sourceRT = new RenderTexture
            (
                textureSize,
                textureSize,
                0,
                RenderTextureFormat.ARGB32,
                RenderTextureReadWrite.sRGB
            );
            sourceRT.filterMode = FilterMode.Point;
            sourceRT.enableRandomWrite = true;
            sourceRT.useMipMap = false;
            sourceRT.autoGenerateMips = false;
            sourceRT.Create();
            sourceMap = blackboardMaterial.GetTexture("_BaseMap");
            // 将源贴图内容复制到 RT
            // Blit 会触发一次 GPU 绘制
            // Texture -> 采样 -> shader -> RenderTexture
            Graphics.Blit(sourceMap, drawingRT);
            // CopyTexture 会直接复制像素，有严格的格式限制
            // Texture -> 直接显存复制 -> Texture
            Graphics.CopyTexture(drawingRT, sourceRT);
            kernelIndex = blackboardCompute.FindKernel("CSMain");
            blackboardCompute.SetTexture(kernelIndex, "_DrawingTex", drawingRT);
            blackboardCompute.SetTexture(kernelIndex, "_SourceTex", sourceRT);
            blackboardMaterial.SetTexture("_BaseMap", drawingRT);
        }
        private void Update()
        {
            // 左键画，右键擦除
            if (Input.GetMouseButton(0) || Input.GetMouseButton(1))
            {
                HandleInput();
            }
            else if (Input.GetMouseButtonUp(0) || Input.GetMouseButtonUp(1))
            {
                isFirstFrame = true;
            }
        }
        private void OnDestroy()
        {
            blackboardMaterial.SetTexture("_BaseMap", sourceMap);
        }
        private void HandleInput()
        {
            Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
            if (Physics.Raycast(ray, out RaycastHit hit))
            {
                if (hit.collider.gameObject == this.gameObject)
                {
                    Vector2 endUV = hit.textureCoord;
                    if (isFirstFrame)
                    {
                        startUV = endUV;
                        isFirstFrame = false;
                    }
                    DrawArea(startUV, endUV);
                    this.startUV = endUV;
                }
            }
            else
            {
                isFirstFrame = true;
            }
        }
        /// <summary>
        /// DrawArea
        /// </summary>
        /// <param name="startUV"></param>
        /// <param name="endUV"></param>
        private void DrawArea(Vector2 startUV, Vector2 endUV)
        {
            int texX = drawingRT.width;
            int texY = drawingRT.height;
            Vector2 a;
            Vector2 b;
            a.x = startUV.x * texX;
            a.y = startUV.y * texY;
            b.x = endUV.x * texX;
            b.y = endUV.y * texY;
            float offset;
            if (Input.GetMouseButton(0))
            {
                offset = brushRadius + edgeSoftness + 1;
                blackboardCompute.SetFloat("_BrushRadius", brushRadius);
                blackboardCompute.SetBool("_IsEraser", false);
            }
            else
            {
                offset = eraserRadius + edgeSoftness + 1;
                blackboardCompute.SetFloat("_BrushRadius", eraserRadius);
                blackboardCompute.SetBool("_IsEraser", true);
            }
            // 计算包围盒
            float minX = Mathf.Clamp(MathF.Min(a.x, b.x) - offset, 0, texX);
            float minY = Mathf.Clamp(MathF.Min(a.y, b.y) - offset, 0, texY);
            float maxX = Mathf.Clamp(MathF.Max(a.x, b.x) + offset, 0, texX);
            float maxY = Mathf.Clamp(MathF.Max(a.y, b.y) + offset, 0, texY);
            float rectWidth = maxX - minX;
            float rectHeight = maxY - minY;
            blackboardCompute.SetInts("_Offset", new int[] { (int)minX, (int)minY });
            blackboardCompute.SetVector("_StartUV", startUV);
            blackboardCompute.SetVector("_EndUV", endUV);
            blackboardCompute.SetVector("_BrushColor", brushColor);
            blackboardCompute.SetFloat("_EdgeSoftness", edgeSoftness);
            // 只需要覆盖 rectWidth * rectHeight 区域的线程组
            int groupsX = Mathf.CeilToInt(rectWidth / 8f);
            int groupsY = Mathf.CeilToInt(rectHeight / 8f);
            blackboardCompute.Dispatch(kernelIndex, groupsX, groupsY, 1);
        }
    }
}

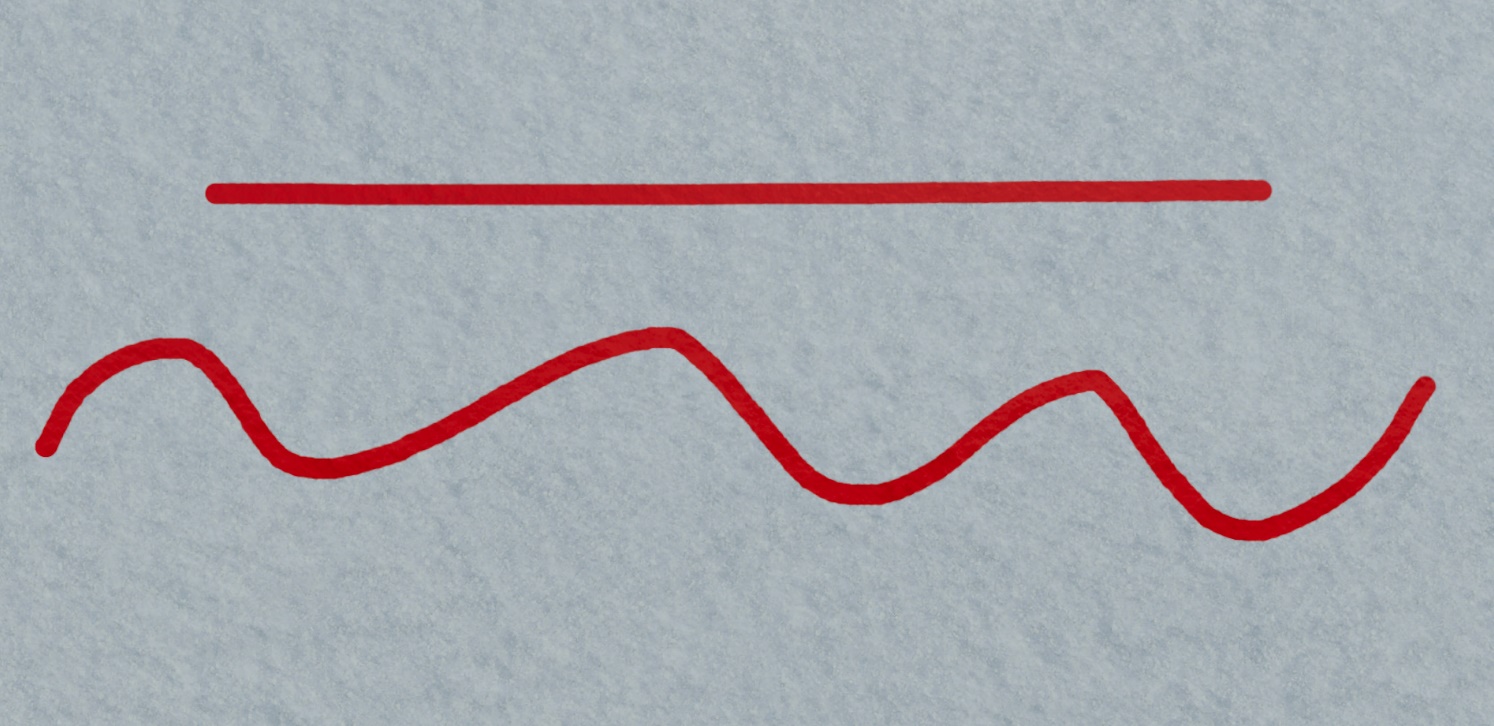

# 效果
  • brushRadius = 10
  • edgeSoftness = 4
