# 群落算法

实现鱼群、鸟群、蜜蜂等群落的模拟。

群落应符合以下规则：

避免与邻近个体发生碰撞
避免与障碍物发生碰撞
趋向与邻近的个体采用相同的速度和方向
向邻近个体的平均位置靠近

# 准备

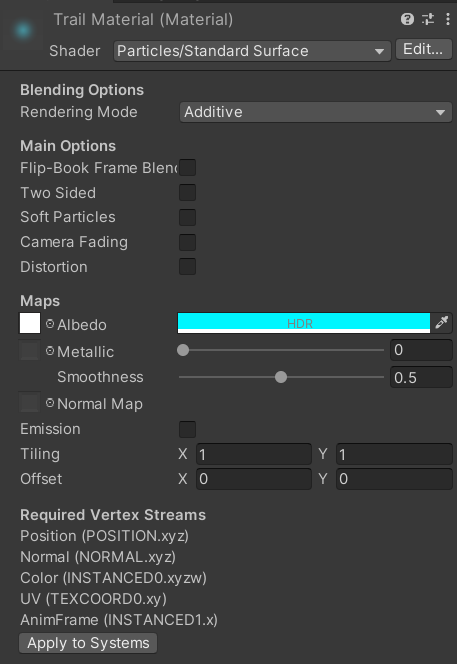

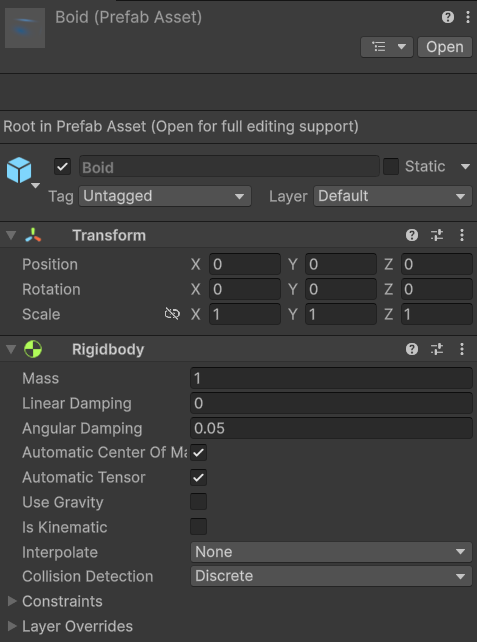

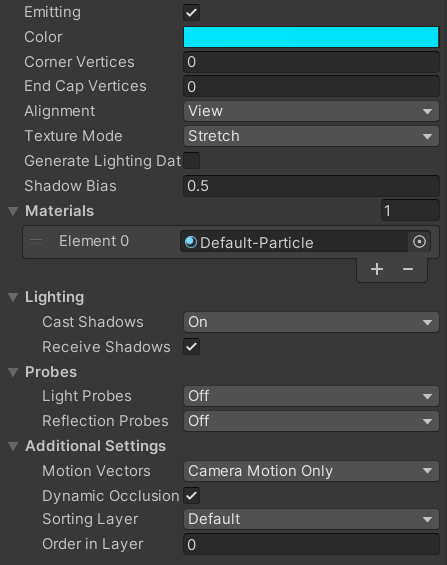

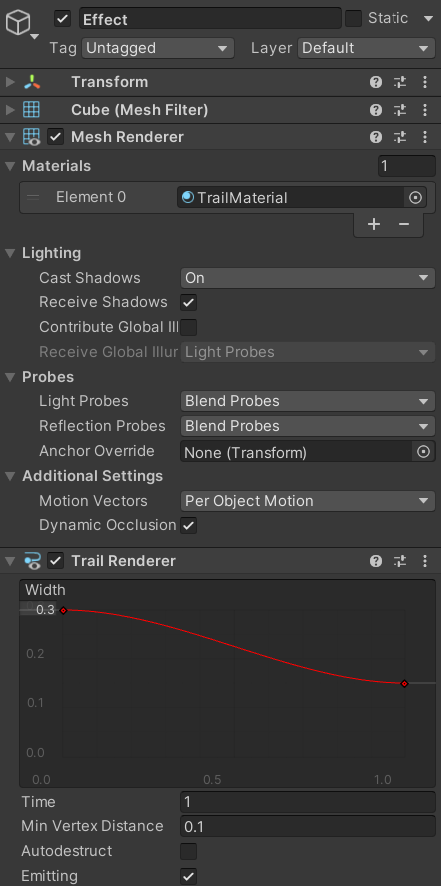

个体（Boid）：准备好模型并添加基础组件
吸引子（Attractor）：空物体，用于挂载吸引子脚本，它是一个群落的中心
生成器（Spawner）：空物体，用于挂载生成器脚本
障碍物（Obstacle）：添加有碰撞器的障碍物，用于测试

# 代码

# 吸引子（Attractor）

Attractor 是所有 Boid 聚集的对象。没有它，Boid 会飞出屏幕。
让它沿着 Sin 函数移动

	using UnityEngine;

	namespace Boids
	{
	/// <summary>
	/// 吸引子，群体的聚集中心
	/// </summary>
	public class Attractor : MonoBehaviour
	{
	[Tooltip("移动速度")]
	public float speed = 1.5f;
	[Tooltip("运动范围")]
	public float radius = 6;
	[Header("x,y,z轴向的相位")]
	public float xPhase = 0.5f;
	public float yPhase = 0.4f;
	public float zPhase = 0.1f;

	private void Update()
	{
	Vector3 tPos = Vector3.zero;
	Vector3 scale = this.transform.localScale;

	tPos.x = Mathf.Sin(xPhase * speed * Time.time) * radius * scale.x;
	tPos.y = Mathf.Sin(yPhase * speed * Time.time) * radius * scale.y;
	tPos.z = Mathf.Sin(zPhase * speed * Time.time) * radius * scale.z;

	this.transform.position = tPos;
	}
	}
	}

# 生成器（Spawner）

控制群落的生成
控制群落的行为
群落中所有个体的父物体

	using System.Collections;
	using UnityEngine;

	namespace Boids
	{
	/// <summary>
	/// 群落生成器
	/// </summary>
	public class Spawner : MonoBehaviour
	{
	[Header("控制群落的生成")]
	[Tooltip("预制件")]
	public GameObject boidsPrefab;
	[Tooltip("吸引子")]
	public Transform boidsAttractor;
	[Tooltip("群落数量")]
	public int numberBoids = 100;
	[Tooltip("生成半径")]
	public int spawnRadius = 10;
	[Tooltip("生成间隔")]
	public float spawnDelay = 0.1f;

	[Header("控制群落的行为")]
	[Tooltip("移动速度")]
	public float velocity = 30;
	[Tooltip("邻近个体检测范围")]
	public float neighborDistance = 30;
	[Tooltip("碰撞距离")]
	public float collDistance = 4;
	[Tooltip("速度匹配")]
	public float velocityMatching = 0.25f;
	[Tooltip("中心聚集")]
	public float flockCenter = 0.2f;
	[Tooltip("个体间碰撞避免")]
	public float collAvoidNeighbor = 2;
	[Tooltip("个体与其他物体间碰撞避免")]
	public float collAvoidOtherNeighbor = 10;
	[Tooltip("向内吸引系数")]
	public float attractPull = 2;
	[Tooltip("向外推出系数")]
	public float attractPush = 2;
	[Tooltip("个体与吸引子之间的距离")]
	public float attractPushDistance = 5f;
	[Tooltip("刷新频率")]
	public float refreshRate = 0.02f;

	private void Start()
	{
	StartCoroutine(InstantiateBoids());
	}

	/// <summary>
	/// 实例化群落
	/// </summary>
	private IEnumerator InstantiateBoids()
	{
	int spawnCount = 0;
	WaitForSeconds wait = new WaitForSeconds(spawnDelay);
	while (spawnCount < numberBoids)
	{
	spawnCount++;
	Instantiate(boidsPrefab, Vector3.zero, Quaternion.identity, this.transform);
	yield return wait;
	}
	}
	}
	}

# Neighborhood 脚本

挂载到个体上
在协程中使用球形射线检测，性能比触发器高
用于跟踪所有邻近个体的信息，包括：
- 邻近个体的平均位置、速度、个体间距
- 其他邻近物体（障碍物）的平均位置

	using System.Collections;
	using System.Collections.Generic;
	using UnityEngine;

	namespace Boids
	{
	/// <summary>
	/// 跟踪所有邻近的个体的信息，包括平均位置、速度、个体间距
	/// </summary>
	public class Neighborhood : MonoBehaviour
	{
	/// <summary>
	/// 所有邻近个体
	/// </summary>
	private List<Boid> neighbors;
	/// <summary>
	/// 其他邻近物体
	/// </summary>
	private List<GameObject> otherNeighbors;

	private Transform tra;
	private SphereCollider coll;
	private Spawner spawner;

	/// <summary>
	/// 所有邻近个体的平均位置，如果没有则返回 Vector3.zero
	/// </summary>
	public Vector3 AveragePositionNeighbors
	{
	get
	{
	Vector3 avg = Vector3.zero;

	if (neighbors.Count == 0) return avg;

	foreach (var neighbor in neighbors)
	{
	avg += neighbor.Tra.position;
	}

	return avg / neighbors.Count;
	}
	}

	/// <summary>
	/// 所有邻近个体的平均速度，如果没有则返回 Vector3.zero
	/// </summary>
	public Vector3 AverageVelocity
	{
	get
	{
	Vector3 avg = Vector3.zero;

	if (neighbors.Count == 0) return avg;

	foreach (var neighbor in neighbors)
	{
	avg += neighbor.Rig.linearVelocity;
	}

	return avg / neighbors.Count;
	}
	}

	/// <summary>
	/// 碰撞距离内的所有个体的平均位置，如果没有则返回 Vector3.zero
	/// </summary>
	public Vector3 AverageCollisionPositionNeighbors
	{
	get
	{
	Vector3 avg = Vector3.zero;

	if (neighbors.Count == 0) return avg;

	// 邻近个体数量
	int nearCount = 0;

	foreach (var neighbor in neighbors)
	{
	Vector3 pos = neighbor.Tra.position;
	if (Vector3.Distance(pos, tra.position) <= spawner.collDistance)
	{
	avg += pos;
	nearCount++;
	}
	}

	return avg / nearCount;
	}
	}

	/// <summary>
	/// 碰撞距离内的所有其他邻近物体的平均位置，如果没有则返回 Vector3.zero
	/// </summary>
	public Vector3 AverageCollisionPositionOthers
	{
	get
	{
	Vector3 avg = Vector3.zero;

	if (neighbors.Count == 0) return avg;

	// 邻近个体数量
	int nearCount = 0;

	foreach (var otherNeighbor in otherNeighbors)
	{
	Vector3 pos = otherNeighbor.transform.position;
	if (Vector3.Distance(pos, tra.position) <= spawner.collDistance)
	{
	avg += pos;
	nearCount++;
	}
	}

	return avg / nearCount;
	}
	}

	private void Awake()
	{
	tra = this.GetComponent<Transform>();
	coll = this.GetComponent<SphereCollider>();
	spawner = tra.parent.GetComponent<Spawner>();
	}

	private void Start()
	{
	neighbors = new List<Boid>();
	otherNeighbors = new List<GameObject>();

	StartCoroutine(UpdateList());
	}

	/// <summary>
	/// 更新邻近个体列表
	/// </summary>
	/// <returns></returns>
	private IEnumerator UpdateList()
	{
	yield return null;

	WaitForSeconds wait = new WaitForSeconds(spawner.refreshRate);
	while (true)
	{
	neighbors.Clear();
	otherNeighbors.Clear();

	RaycastHit[] raycastHits = Physics.SphereCastAll(tra.position, spawner.neighborDistance, tra.forward, spawner.neighborDistance);

	foreach (RaycastHit raycast in raycastHits)
	{
	if (raycast.transform.TryGetComponent<Boid>(out Boid temp))
	{
	neighbors.Add(temp);
	}
	else
	{
	otherNeighbors.Add(raycast.transform.gameObject);
	}
	}

	yield return wait;
	}
	}
	}
	}

# 个体（Boid）

挂载到个体上
随机初始位置，随机颜色（可选）
利用刚体进行运动
根据 Neighborhood 脚本中的信息计算个体的速度（线性插值）
在协程中实现，性能比 Update 高

	using System.Collections;
	using UnityEngine;

	namespace Boids
	{
	/// <summary>
	/// Boids
	/// </summary>
	public class Boid : MonoBehaviour
	{
	/// <summary>
	/// 即使有内置 transform 也需要缓存
	/// 反复调用 this.transform 会有性能损失，因为每次调用都会触发底层的 C++ 到 C# 的转换开销
	/// </summary>
	public Transform Tra { get; private set; }
	public Rigidbody Rig { get; private set; }

	private MeshRenderer mRenderer;
	private TrailRenderer tRenderer;
	private Spawner spawner;
	private Neighborhood neighborhood;

	private void Awake()
	{
	Tra = this.GetComponent<Transform>();
	Rig = this.GetComponent<Rigidbody>();
	mRenderer = this.GetComponentInChildren<MeshRenderer>();
	tRenderer = this.GetComponentInChildren<TrailRenderer>();
	spawner = Tra.parent.GetComponent<Spawner>();
	neighborhood = this.GetComponent<Neighborhood>();
	}

	private void Start()
	{
	Init();
	LookAhead();
	StartCoroutine(UpdateMovement());
	}

	/// <summary>
	/// 初始化
	/// </summary>
	private void Init()
	{
	// 随机初始位置
	Tra.position = Random.insideUnitSphere * spawner.spawnRadius;

	// 随机初始速度
	Rig.linearVelocity = Random.onUnitSphere * spawner.velocity;

	// 随机颜色，并保证不暗淡
	Color randomColor_start;
	Color randomColor_end;
	do
	{
	randomColor_start = new Color(Random.value, Random.value, Random.value);
	randomColor_end = new Color(Random.value, Random.value, Random.value);
	}
	while (randomColor_start.r + randomColor_start.g + randomColor_start.b < 1 \|\|
	randomColor_end.r + randomColor_end.g + randomColor_end.b < 1
	);

	foreach (Material mat in mRenderer.materials)
	{
	mat.color = randomColor_start;
	}

	tRenderer.startColor = randomColor_start;
	tRenderer.endColor = randomColor_end;
	}

	/// <summary>
	/// 更新移动
	/// </summary>
	private IEnumerator UpdateMovement()
	{
	yield return null;

	WaitForSeconds wait = new WaitForSeconds(spawner.refreshRate);
	while (true)
	{
	Move();
	LookAhead();
	yield return wait;
	}
	}

	/// <summary>
	/// 向前看
	/// </summary>
	private void LookAhead()
	{
	Tra.LookAt(Tra.position + Rig.linearVelocity);
	}

	/// <summary>
	/// 移动
	/// </summary>
	private void Move()
	{
	Vector3 velocity = Rig.linearVelocity;

	Vector3 collisionAvoid = CollisionAvoid();
	Vector3 collisionAvoidOthers = CollisionAvoidOthers();
	Vector3 velocityAlign = VelocityMatch();
	Vector3 velocityCenter = VelocityCenter();

	velocity = Vector3.Lerp(velocity, velocityAlign, spawner.velocityMatching * Time.deltaTime);
	velocity = Vector3.Lerp(velocity, velocityCenter, spawner.flockCenter * Time.deltaTime);
	velocity = Vector3.Lerp(velocity, collisionAvoid, spawner.collAvoidNeighbor * Time.deltaTime);
	velocity = Vector3.Lerp(velocity, collisionAvoidOthers, spawner.collAvoidOtherNeighbor * Time.deltaTime);

	Attract(ref velocity);

	velocity = velocity.normalized * spawner.velocity;

	Rig.linearVelocity = velocity;
	}

	/// <summary>
	/// 靠近或远离吸引子
	/// </summary>
	/// <param name="velocity"></param>
	/// <returns></returns>
	private void Attract(ref Vector3 velocity)
	{
	// 指向吸引子的矢量
	Vector3 towardAttractor = spawner.boidsAttractor.transform.position - Tra.position;

	//true: 远离吸引子
	bool isTowardAttractor = towardAttractor.magnitude > spawner.attractPushDistance;

	// 指向吸引子的矢量，长度为速度的大小
	Vector3 attractVelocity = towardAttractor.normalized * spawner.velocity;

	// 分情况求方向
	if (isTowardAttractor)
	{
	velocity = Vector3.Lerp(velocity, attractVelocity, spawner.attractPull * Time.deltaTime);
	}
	else
	{
	velocity = Vector3.Lerp(velocity, -attractVelocity, spawner.attractPush * Time.deltaTime);
	}
	}

	/// <summary>
	/// 个体间避免碰撞
	/// </summary>
	/// <returns></returns>
	private Vector3 CollisionAvoid()
	{
	Vector3 velocityAvoid = Vector3.zero;
	Vector3 averagePosition = neighborhood.AverageCollisionPositionNeighbors;

	if (averagePosition != Vector3.zero)
	{
	velocityAvoid = Tra.position - averagePosition;
	velocityAvoid = velocityAvoid.normalized * spawner.velocity;
	}

	return velocityAvoid;
	}

	/// <summary>
	/// 与其他物体避免碰撞
	/// </summary>
	/// <returns></returns>
	private Vector3 CollisionAvoidOthers()
	{
	Vector3 velocityAvoid = Vector3.zero;
	Vector3 averagePositionOthers = neighborhood.AverageCollisionPositionOthers;

	if (averagePositionOthers != Vector3.zero)
	{
	velocityAvoid = Tra.position - averagePositionOthers;
	velocityAvoid = velocityAvoid.normalized * spawner.velocity;
	}

	return velocityAvoid;
	}

	/// <summary>
	/// 速度匹配
	/// </summary>
	/// <returns></returns>
	private Vector3 VelocityMatch()
	{
	Vector3 velocityAlign = neighborhood.AverageVelocity;

	if (velocityAlign != Vector3.zero)
	{
	velocityAlign = velocityAlign.normalized * spawner.velocity;
	}

	return velocityAlign;
	}

	/// <summary>
	/// 中心聚集
	/// </summary>
	/// <returns></returns>
	private Vector3 VelocityCenter()
	{
	Vector3 velocityCenter = neighborhood.AveragePositionNeighbors;

	if (velocityCenter != Vector3.zero)
	{
	velocityCenter -= Tra.position;
	velocityCenter = velocityCenter.normalized * spawner.velocity;
	}

	return velocityCenter;
	}
	}
	}

# 测试

现在 Boid 看起来像是蜜蜂。你可以更改 Spawner 的数值以达到不同的效果。下表中列出了一些有趣的版本：

	Default	Sparse follow	Small groups	Formation
velocity	30	20	20	20
neighborDistance	15	15	4	15
collDistance	4	10	2	10
velocityMatching	0.25	0.25	0.25	0.25
flockCenter	0.2	0.2	8	0.2
collAvoidNeighbor	2	4	10	4
collAvoidOtherNeighbor	10	10	10	10
attractPull	2	1	1	3
attractPush	2	2	20	2
attractPushDistance	5	20	20	1
refreshRate	0.02	0.02	0.02	0.02

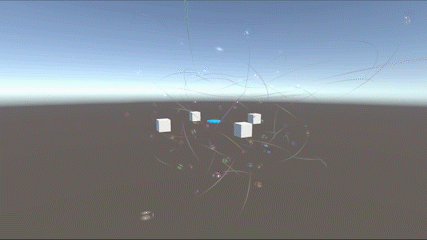

默认配置的演示（白色方块是障碍物）：
gif
